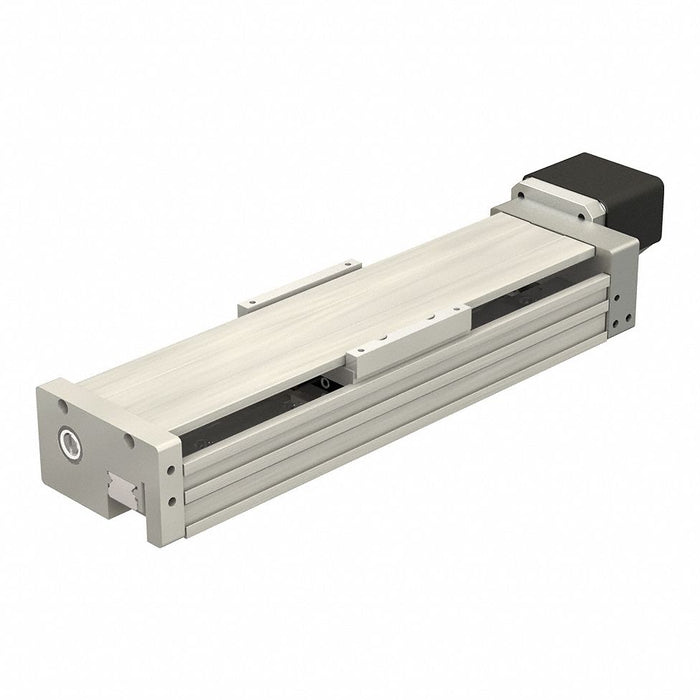

PBC Linear CSLSM10AGXR1ZF-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM10AGXR1ZF-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 2.6 lbs

$1,489.75 - $1,489.75
$1,489.75
$1,489.75 - $1,489.75
$1,489.75

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 130 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Drive End Option Shaft
Voltage Rating 24V
Motor Mount Option NEMA 17 Motor Mount
Bearing Load Capacity 2,500 N
Speed 4,200 mm/sec
Screw Type Lead Screw
Cover Type Tall
Lubricant Oil Based Lithium Soap Grease
Number of Carriages Included 1
Rail System Type Profile Rail
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Motor Type Stepper Motor
Drive Input Speed 3,000 RPM
Repeatability 0.02 mm
Carriage Type Profile Rail
Bearing Type Ball
Nut Type Anti-Backlash
Acceleration 50 m/sq sec
Lubricant Type Oil Based Lithium Soap Grease
Travel Speed 4,200 mm/sec
Maximum Acceleration 50 m/sq sec
Country of Origin United States
