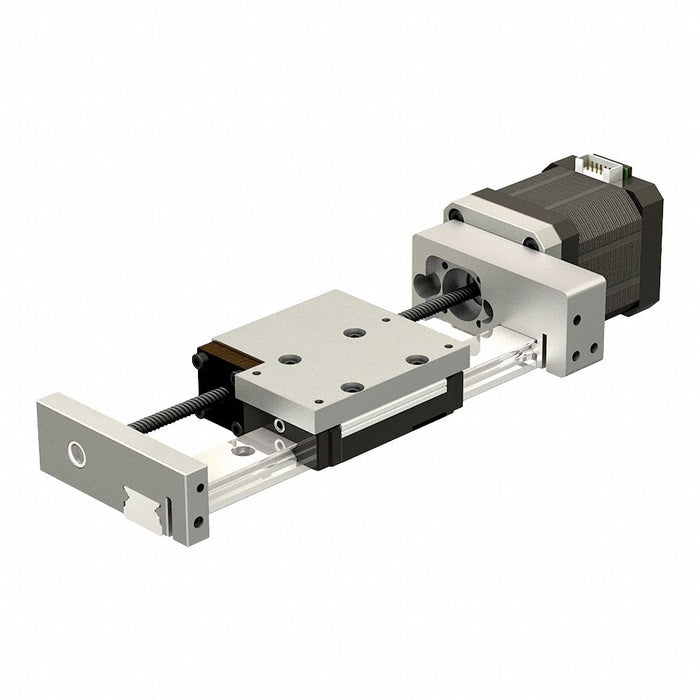

PBC Linear CSLSM06AGXR3A1-2SN-0200-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM06AGXR3A1-2SN-0200-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 2 lbs

$1,343.19 - $1,343.19
$1,343.19
$1,343.19 - $1,343.19
$1,343.19

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 5,590 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Rail System Type Profile Rail
Bearing Load Capacity 5,590 N
Speed 4,200 mm/sec
Motor Mount Option NEMA 17 Single Stack
Carriage Type Profile Rail
Drive End Option PBC Linear Integrated Motor Screw
Lubricant Oil Based Lithium Soap Grease
Motor Type Stepper Motor
Nut Type Anti-Backlash
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Bearing Type Ball
Screw Type Lead Screw
Number of Carriages Included 1
Cover Type No Cover
Drive Input Speed 3,000 RPM
Voltage Rating 24V
Acceleration 50 m/sq sec
Repeatability 0.02 mm
Travel Speed 4,200 mm/sec
Lubricant Type Oil Based Lithium Soap Grease
Maximum Acceleration 50 m/sq sec
Country of Origin United States
