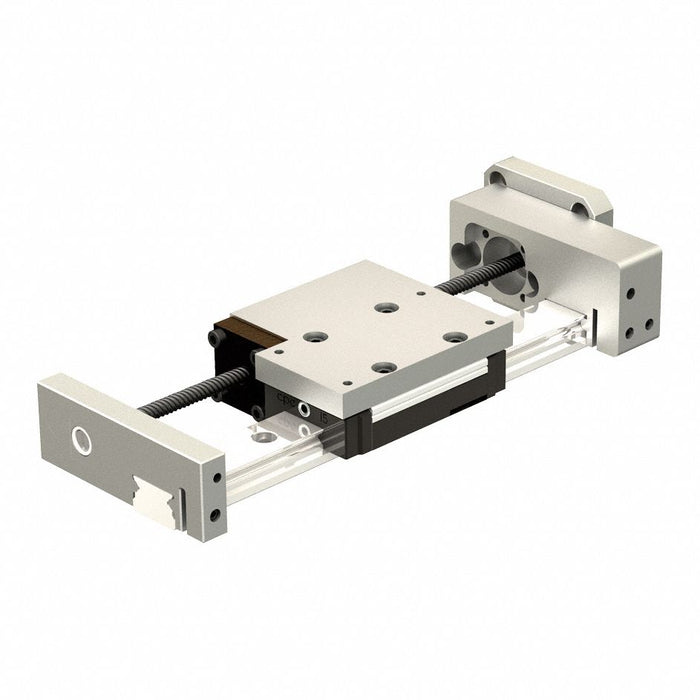

PBC Linear CSLSM06AGXR10Z-2SN-0200-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM06AGXR10Z-2SN-0200-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$1,230.12 - $1,230.12
$1,230.12
$1,230.12 - $1,230.12
$1,230.12

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 5,590 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Rail System Type Profile Rail
Lubricant Oil Based Lithium Soap Grease
Bearing Type Ball
Motor Mount Option None - Motor Mount Kit
Carriage Type Profile Rail
Bearing Load Capacity 5,590 N
Drive End Option Shaft
Screw Type Lead Screw
Drive Input Speed 3,000 RPM
Voltage Rating 24V
Number of Carriages Included 1
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Repeatability 0.02 mm
Speed 4,200 mm/sec
Cover Type No Cover
Acceleration 50 m/sq sec
Nut Type Anti-Backlash
Motor Type Stepper Motor
Travel Speed 4,200 mm/sec
Country of Origin United States
