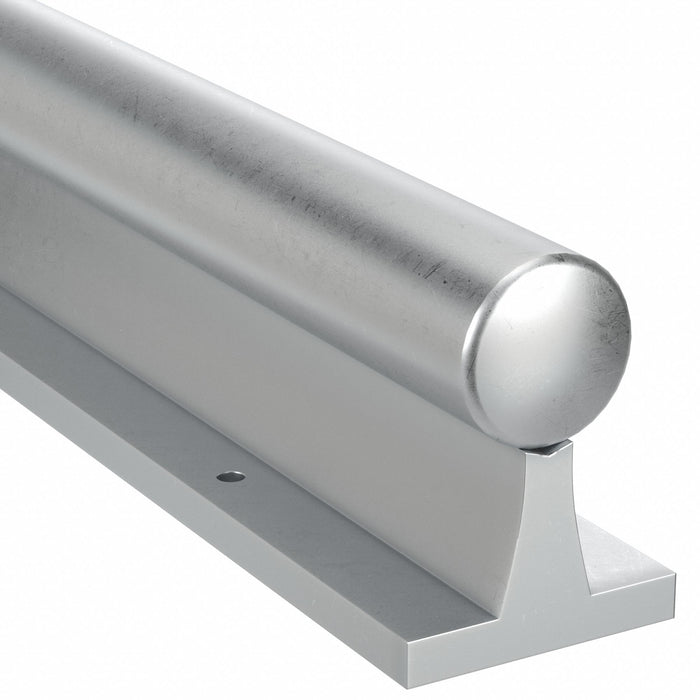

PBC Linear CCR16-024.000 Pre-Drilled Linear Shaft Assembly, 1 in Shaft Dia, 24 in Lg, with Support Rail

PBC Linear CCR16-024.000 Pre-Drilled Linear Shaft Assembly, 1 in Shaft Dia, 24 in Lg, with Support Rail

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 5.0 lbs

$390.37 - $390.37
$390.37
$390.37 - $390.37
$390.37

Pre-Drilled Linear Shaft Assembly, System of Measurement Inch, Shaft Diameter 1 in, Shaft Length 24 in, Shaft Material Aluminum, Shaft Material Finish Ceramic Coated, Center Height 1.75 in, Rail Base Overall Width 2.125 in, Diameter Tolerance - Maximum -0.0004 in, Support Rail Material Finish Ceramic Coated, Shaft Drilling Pre-Drilled, Shaft Hole Spacing 6 in, Shaft End to Hole 3 in, Shaft Hole Thread Size 1/4 in, Support Rail Drilling Pre-Drilled, Rail Top Width 0.5 in

Material Aluminum
Mounting Hole Center to Center 6 in
Mounting Hole from Shaft End 3 in
Mounting Holes Clean
Finish Ceramic Coated
For Use With Simplicity FrelonGOLD(TM) Lined Bearings
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 70 RC
Mounting Surface to Shaft Center (In.) 1.75 in
Type Aluminum Rail/Shaft
System of Measurement Inch
Resistance Properties Corrosion Resistance, Non-Magnetic, Vibration Resistance
Support Rail Material Aluminum
Shaft Material Aluminum
Minimum Operating Temperature 0 Degrees F
Shaft Hole Spacing 6 in
Shaft Material Finish Ceramic Coated
Rail End to Hole 3 in
Support Rail Drilling Pre-Drilled
Product Type Linear Shafting and Rail
Shaft End to Hole 3 in
Support Rail Material Finish Ceramic Coated
Maximum Operating Temperature 400 Degrees F
Shaft Drilling Pre-Drilled
Country of Origin United States
