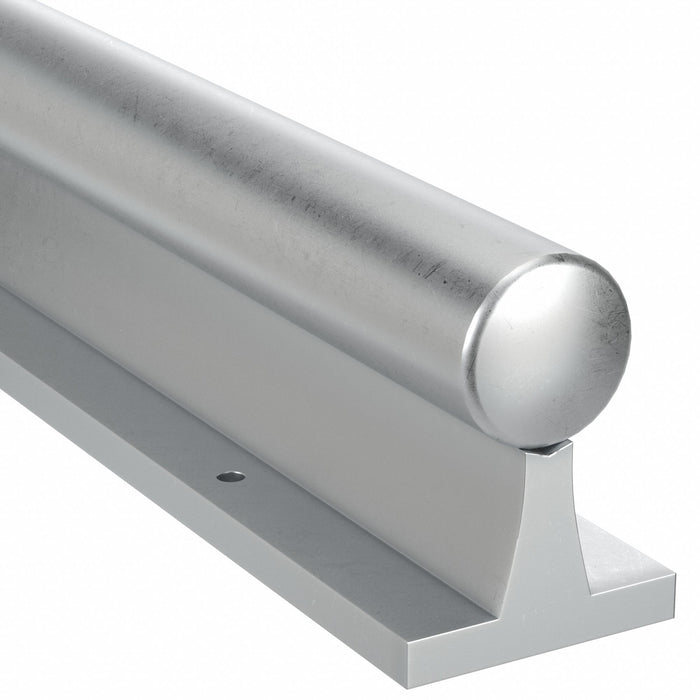

PBC Linear CCR12-024.000 Pre-Drilled Linear Shaft Assembly, 3/4 in Shaft Dia, 24 in Lg, with Support Rail

PBC Linear CCR12-024.000 Pre-Drilled Linear Shaft Assembly, 3/4 in Shaft Dia, 24 in Lg, with Support Rail

UPC: | Harmonization / Schedule B : 8482.99.0500

Country of Origin: United States | Shipping Weight: 3.45 lbs

$327.71 - $327.71
$327.71
$327.71 - $327.71
$327.71

Pre-Drilled Linear Shaft Assembly, System of Measurement Inch, Shaft Diameter 3/4 in, Shaft Length 24 in, Shaft Material Aluminum, Shaft Material Finish Ceramic Coated, Center Height 1.5 in, Rail Base Overall Width 1.75 in, Diameter Tolerance - Maximum -0.0004 in, Support Rail Material Finish Ceramic Coated, Shaft Drilling Pre-Drilled, Shaft Hole Spacing 6 in, Shaft End to Hole 3 in, Shaft Hole Thread Size #10, Support Rail Drilling Pre-Drilled, Rail Top Width 0.375 in

Material Aluminum
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole Center to Center 6 in
Min. Surface Hardness 70 RC
For Use With Simplicity FrelonGOLD(TM) Lined Bearings
Mounting Surface to Shaft Center (In.) 1.5 in
Finish Ceramic Coated
Mounting Hole from Shaft End 3 in
Mounting Holes Clean
Type Aluminum Rail/Shaft
System of Measurement Inch
Support Rail Material Aluminum
Support Rail Material Finish Ceramic Coated
Support Rail Drilling Pre-Drilled
Resistance Properties Corrosion Resistance, Non-Magnetic, Vibration Resistance
Shaft Material Aluminum
Shaft End to Hole 3 in
Shaft Hole Spacing 6 in
Shaft Material Finish Ceramic Coated
Product Type Linear Shafting and Rail
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature 0 Degrees F
Shaft Drilling Pre-Drilled
Rail End to Hole 3 in
Country of Origin United States
