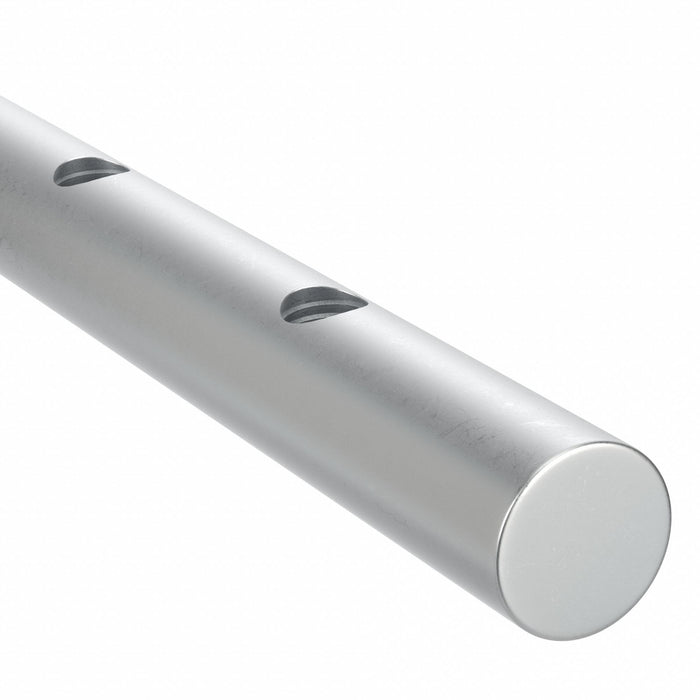

PBC Linear CCPDL32-042.000 Pre-Drilled Linear Shaft

PBC Linear CCPDL32-042.000 Pre-Drilled Linear Shaft, Ceramic-Coated Aluminum, 2 in Dia, 42 in Lg

UPC: | Harmonization / Schedule B : 7604.29.1010

Country of Origin: United States | Shipping Weight: 12.94 lbs

$669.88 - $669.88
$669.88
$669.88 - $669.88
$669.88

Linear Shaft, System of Measurement Inch, Diameter 2 in, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 42 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Mounting Hole Thread Size 1/2-13, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in, Mounting Hole Center to Center 8 in, Mounting Hole Center to Shaft End 4 in

Material Aluminum Alloy
Min. Surface Hardness 70 RC
Mounting Hole Center to Center 8 in
Mounting Holes Tapped
For Use With Lined Bearings, Pillow Blocks
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole from Shaft End 1 in
Finish Ceramic Coated
Type Pre-Drilled Shaft
System of Measurement Inch
Surface Hardness - Minimum 70 HRC
Series CCPDL
Mounting Hole Type Tapped
Shaft Type Pre-Drilled Shaft
Mounting Hole Center to Shaft End 4 in
Weight Per Inch 0.308 lb
Operating Temperature - Minimum 0 Degrees F
End Type Plain Ends
Core Type Solid
Operating Temperature - Maximum 400 Degrees F
Country of Origin United States
