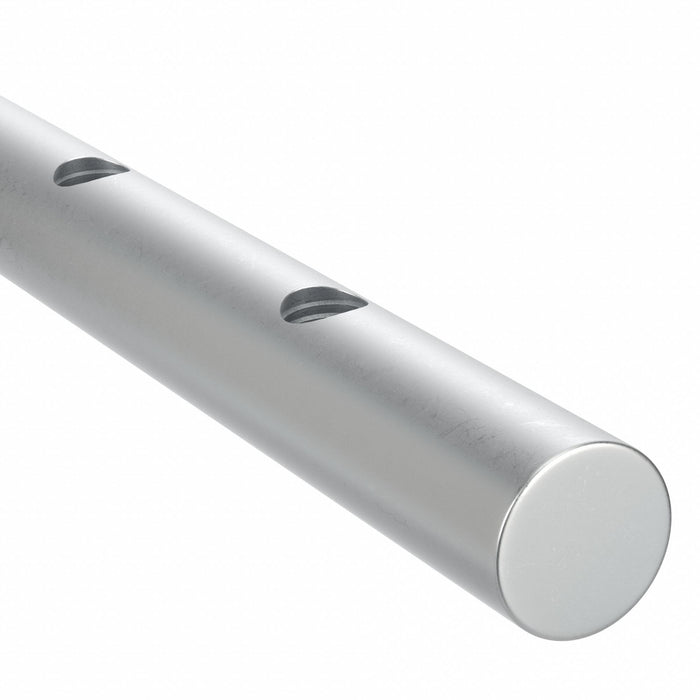

PBC Linear CCPDL16-024.000 Pre-Drilled Linear Shaft

PBC Linear CCPDL16-024.000 Pre-Drilled Linear Shaft, Ceramic-Coated Aluminum, 1 in Dia, 24 in Lg

UPC: | Harmonization / Schedule B : 7604.29.1010

Country of Origin: United States | Shipping Weight: 1.85 lbs

$230.29 - $230.29
$230.29
$230.29 - $230.29
$230.29

Linear Shaft, System of Measurement Inch, Diameter 1 in, Shaft Type Pre-Drilled Shaft, End Type Plain Ends, Core Type Solid, Overall Length 24 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Mounting Hole Thread Size 1/4-20, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in, Mounting Hole Center to Center 6 in, Mounting Hole Center to Shaft End 3 in

Material Aluminum Alloy
Mounting Hole Center to Center 6 in
Temp. Range (F) 0 Degrees - 400 Degrees F
Mounting Hole from Shaft End 3 in
Finish Ceramic Coated
Min. Surface Hardness 70 RC
For Use With Lined Bearings, Pillow Blocks
Mounting Holes Tapped
Type Pre-Drilled Shaft
System of Measurement Inch
Operating Temperature - Minimum 0 Degrees F
Number of Mounting Holes 4
Series CCPDL
Mounting Hole Type Tapped
End Type Plain Ends
Weight Per Inch 0.077 lb
Surface Hardness - Minimum 70 HRC
Shaft Type Pre-Drilled Shaft
Mounting Hole Center to Shaft End 3 in
Core Type Solid
Operating Temperature - Maximum 400 Degrees F
Country of Origin United States
