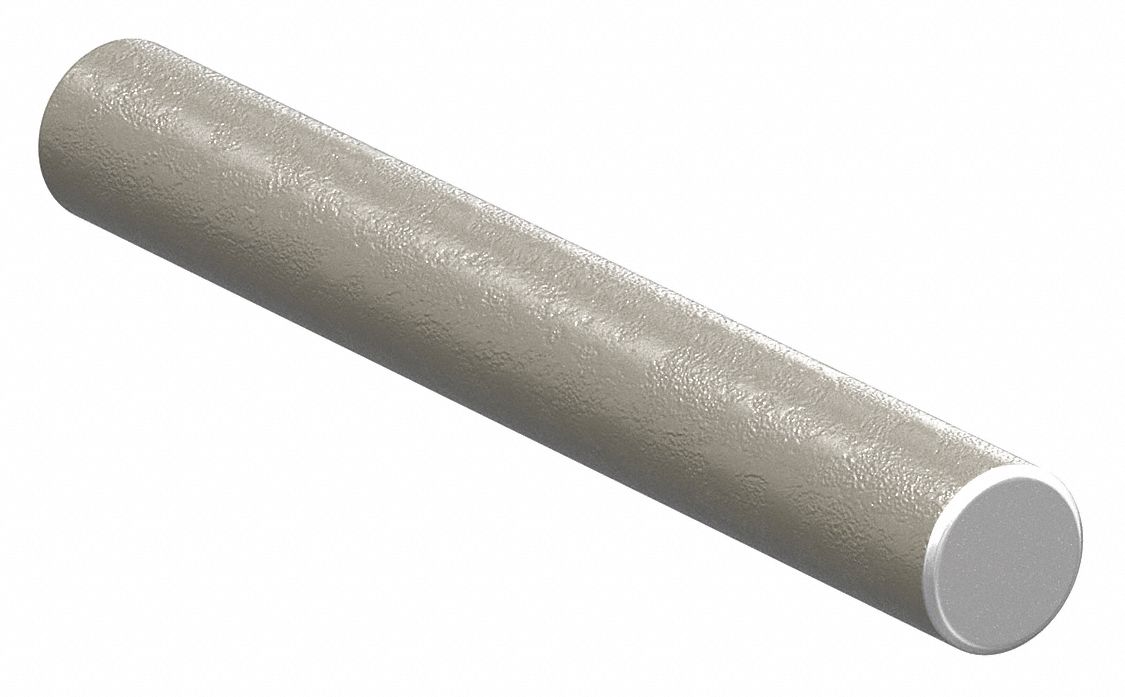

PBC Linear CC24-018.000 Linear Shaft, Solid Shaft, 1 1/2 in Dia, 18 in Lg, Aluminum, Ceramic Coated

PBC Linear CC24-018.000 Linear Shaft, Solid Shaft, 1 1/2 in Dia, 18 in Lg, Aluminum, Ceramic Coated

UPC: | Harmonization / Schedule B : 7604.29.1010

Country of Origin: United States | Shipping Weight: 3.11 lbs

$250.04 - $250.04
$250.04
$250.04 - $250.04
$250.04

Linear Shaft, System of Measurement Inch, Diameter 1 1/2 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 18 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Aluminum Alloy
Min. Surface Hardness 70 RC
For Use With Lined Bearings, Pillow Blocks
Finish Ceramic Coated
Temp. Range (F) 0 Degrees - 400 Degrees F
Type Solid Shaft
System of Measurement Inch
Series CC
End Type Plain Ends
Core Type Solid
Weight Per Inch 0.173 lb
Operating Temperature - Maximum 400 Degrees F
Surface Hardness - Minimum 70 HRC
Operating Temperature - Minimum 0 Degrees F
Shaft Type Solid Shaft
Country of Origin United States
