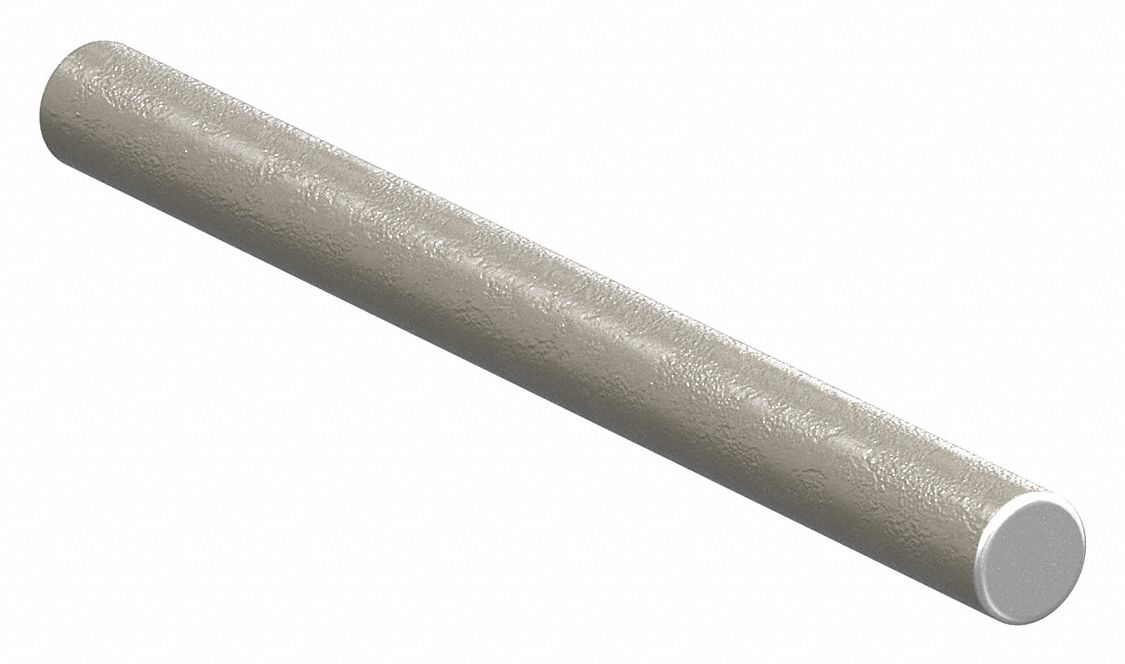

PBC Linear CC08-009.000 Linear Shaft, Solid Shaft, 1/2 in Dia, 9 in Lg, Aluminum, Ceramic Coated

PBC Linear CC08-009.000 Linear Shaft, Solid Shaft, 1/2 in Dia, 9 in Lg, Aluminum, Ceramic Coated

UPC: | Harmonization / Schedule B : 7604.29.1010

Country of Origin: United States | Shipping Weight: 0.17 lbs

$17.56 - $17.56
$17.56
$17.56 - $17.56
$17.56

Linear Shaft, System of Measurement Inch, Diameter 1/2 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 9 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Aluminum Alloy
Finish Ceramic Coated
For Use With Lined Bearings, Pillow Blocks
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 70 RC
Type Solid Shaft
System of Measurement Inch
Operating Temperature - Minimum 0 Degrees F
Core Type Solid
Weight Per Inch 0.019 lb
End Type Plain Ends
Series CC
Shaft Type Solid Shaft
Surface Hardness - Minimum 70 HRC
Operating Temperature - Maximum 400 Degrees F
Country of Origin United States
