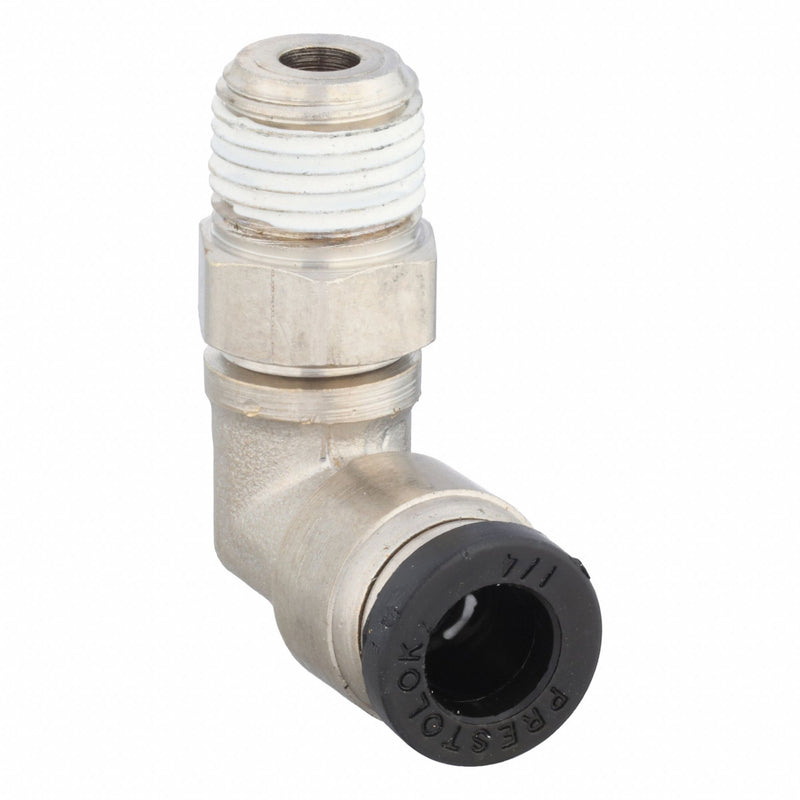

Parker W169PLP-4-2 Push-Fit Elbow Fitting, 90° Elbow, 1/4 in OD x 1/8 in Pipe Size, Push-to-Connect x MNPTF

Parker W169PLP-4-2 Push-Fit Elbow Fitting, 90° Elbow, 1/4 in OD x 1/8 in Pipe Size, Push-to-Connect x MNPTF

UPC: | Harmonization / Schedule B : 3917.40.0000

Country of Origin: United States | Shipping Weight: 0.05 lbs

$8.65 - $8.65
$8.65
$8.65 - $8.65
$8.65

Nickel-plated brass push-to-connect tube fittings are suitable for air and non-potable water applications. Brass, an alloy of copper and zinc, is strong and resists corrosion from water, heat, acids, and minerals. The nickel plating increases corrosion and wear resistance.

Shape 90° Elbow with Swivel
Series Prestolok
Compatible Tube Hardness 90 Shore A; 95 Shore A
Fitting Body Material Nickel-Plated C37700 Brass
Material Grade C37700
Temperature Range 0 °F to 200 °F
Maximum Operating Pressure 300 psi
Includes Thread Sealant Yes ( White Acrylic Sealant)
Compatible Tube Material Polyethylene; Polypropylene; Polyurethane; Rigid Nylon; Semi-Rigid Nylon
Fitting Side A Connection Type Push-to-Connect
Fitting Side A Tube Outer Diameter 1/4 in
Fitting Side B Connection Type MNPTF
Fitting Side B Pipe Size 1/8 in
Overall Length 27/32 in
Release Type Button
Release Ring Color Black
Release Ring Material Nitrile Rubber
Vacuum Rating 28 inHg
Color Silver
Resistance Properties Chemical-Resistant
For Media Type Air; Gases; Oils
Application Automation; Automotive; Climate Control; Electronics; Industrial; Lubrication; Packaging; Pneumatics; Robotics; Textile; Vacuum
Standards UL94 V-0
Country of Origin USA
