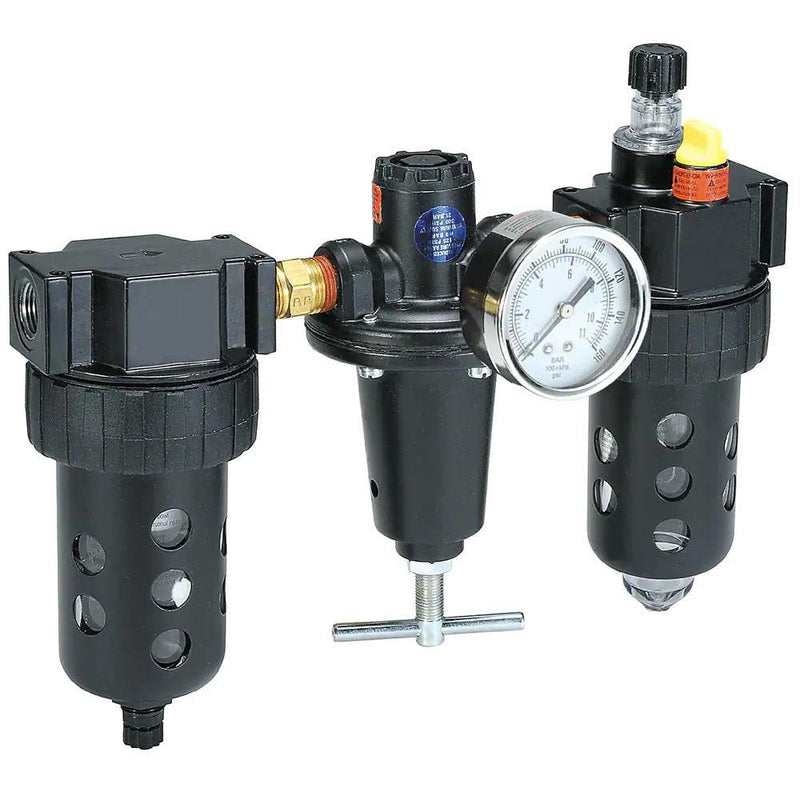

Parker C628-12FRLWJCWR FRL Combination Unit 1-1/2 NPT, Heavy-Duty, 3 Pc Filter-Regulator-Lubricator with Pressure Gauge

UPC: | Harmonization / Schedule B :

Country of Origin: United States | Shipping Weight: 30 lbs

Original price $1,419.47 - Original price $1,419.47
Original price
$1,419.47
$1,419.47 - $1,419.47
Current price $1,419.47

450 SCFM, 250 Max psi, Metal Bowl, Automatic Drain. C628-12FRLWJCWR is obsolete. BOM Created to be Assembled in House. See components below.  Lead time: 35 days after receipt of order.

See components below.

1 PC OF F602-12WJR/M4
1 PC OF R119-12CG/M2
1 PC OF PL40-0B-G00
2 PC OF 1 1/2 FF-S

Configuration 3 Pc. Filter-Regulator-Lubricator
Body Type Heavy-Duty
Port Size NPT 1-1/2
End Connections NPT
Maximum Supply Pressure (psi) 250
Bowl Material Metal
Cubic Feet per Minute 450
Drain Type Automatic
Micron Rating 40
Gauge Port Size 1/4
Body Material Zinc
Includes Sight Glass Yes
Brackets Included No
Pressure Gauge Included Yes
Modular Connection No
Series C628
Bowl Guard Yes
Lubricator Bowl Capacity (oz.) 16.0
Minimum Temperature (Deg F - 3 Decimals) 40
Width (Decimal Inch - 4 Decimals) 16.5000
Height (mm) 359.00
Maximum Temperature (F) ( - 0 Decimals) 125
Height (Decimal Inch) 14.1300
UNSPSC Code 40161500
Country of Origin United States
