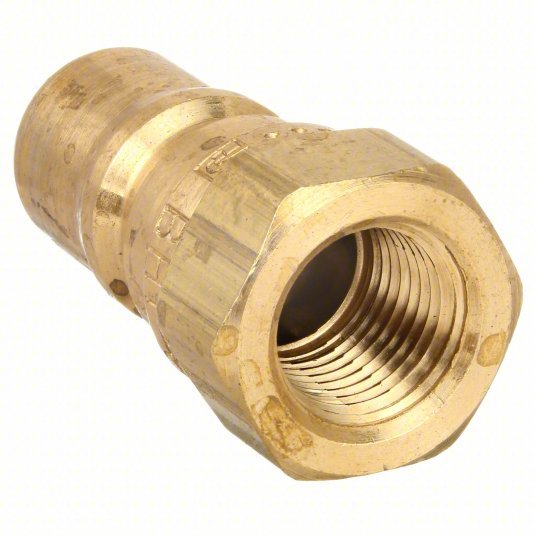

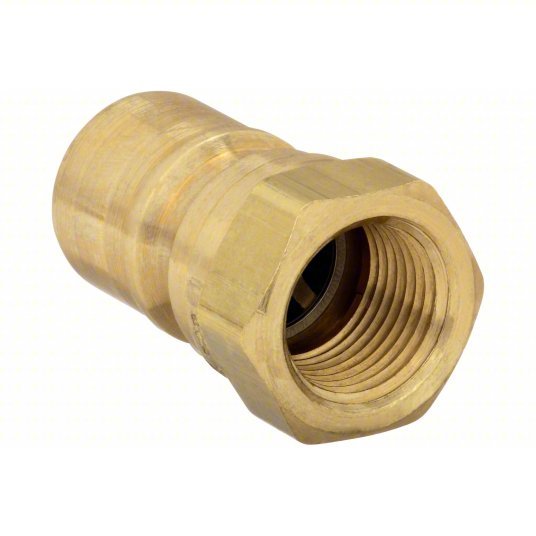

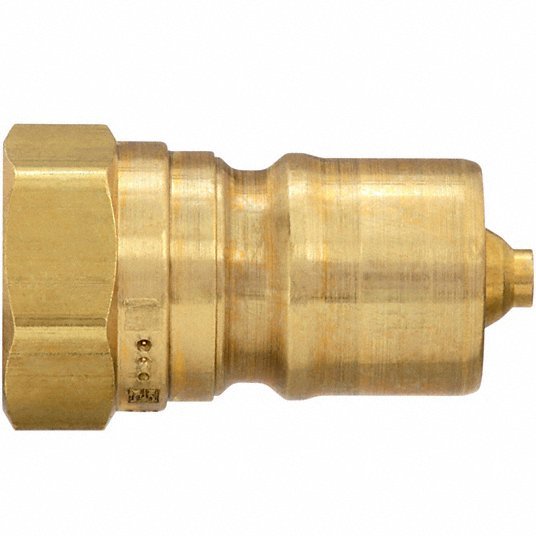

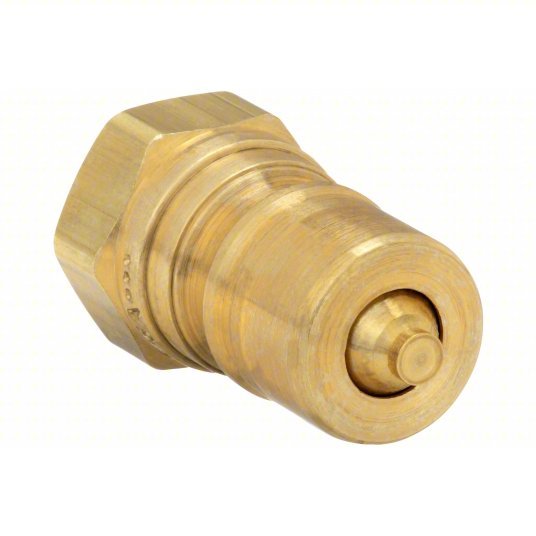

Parker BH2-61 Hydraulic Quick Connect Hose Coupling, Brass Body, Ball Lock, 1/4"-18 Thread Size, 60 Series

by Parker
$21.53
SKU KV31A880

Hydraulic Quick Connect Hose Coupling, Plug, 60 Series, Brass, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 3,700 psi, Max. Flow Rate 11 lpm

Item Hydraulic Quick Connect Hose Coupling
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Interchange Type ISO 7241-1 Series B
Connection Type NPTF
Coupler Flow Rate 3.0 gpm
Max. Pressure 1000 psi
Coupler Body Material Brass
Coupler Finish Plain
Series 60
Body Material Brass
Coupling Locking Type Ball
Coupler Connection Type FNPT
Standards ISO 7241-1 Series B
Seal Material Nitrile
Shut Off double
Locking Mechanism Ball
Operating Temp. Range -40 Degrees to 250 Degrees F
Bearing Material Stainless Steel
For Use With ISO 7241-1 Series B Coupler
Parker Interchange BH2-61
Includes Heavy Duty Steel Nipples, Steam, Valve Actuator
Valve Design Poppet
Hansen Interchange B2-K16
Valve Type Poppet
Max. Flow Rate 11 lpm
Safeway Interchange BS101-2
Max. Working Pressure @ 70 F 3,700 psi
Includes Bearing Yes
Finish/Coating Plain
Includes Shut Off Yes
Fitting Type Female NPTF
Includes Valve Yes
Snap-Tite Interchange B72N4-4F
Coupling Component Plug
Hose Fitting Gender Female
Package Quantity 1
