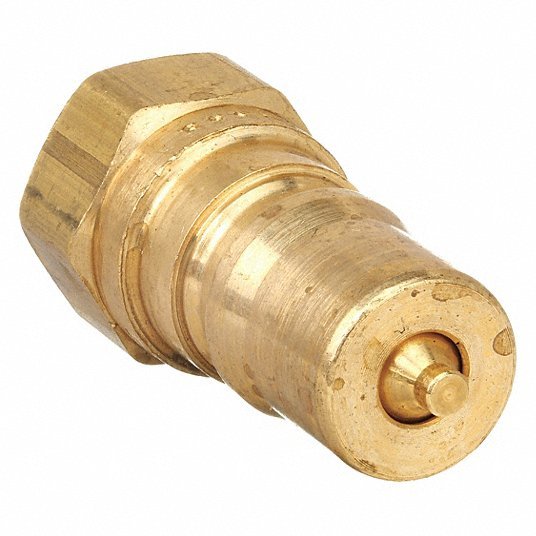

Parker BH1-61 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series
by Parker
$18.84
SKU KV31A879
Hydraulic Quick Connect Hose Coupling, Plug, 60 Series, Brass, Coupling Size 1/8 in, Female, Max. Working Pressure @ 70
F 3,000 psi, Max. Flow Rate 3 lpm
| Item | Hydraulic Quick Connect Hose Coupling |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Coupler Interchange Type | ISO 7241-1 Series B |
| Connection Type | NPTF |
| Coupler Flow Rate | 0.8 gpm |
| Max. Pressure | 1000 psi |
| Coupler Body Material | Brass |
| Coupler Finish | Plain |
| Series | 60 |
| Body Material | Brass |
| Coupling Locking Type | Sleeve |
| For Use With | ISO 7241-1 Series B Coupler |
| Shut Off | double |
| Locking Mechanism | Ball |
| Bearing Material | Stainless Steel |
| Standards | ISO 7241-1 Series B |
| Includes | Sleeve Lock |
| Seal Material | Nitrile |
| Valve Design | Poppet |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Parker Interchange | BH1-61 |
| Coupler Connection Type | FNPT |
| Hansen Interchange | B1-K11 |
| Includes Valve | Yes |
| Fitting Type | Female NPTF |
| Snap-Tite Interchange | B72N2-2F |
| Finish/Coating | Plain |
| Includes Bearing | Yes |
| Coupling Component | Plug |
| Max. Working Pressure @ 70 F | 3,000 psi |
| Max. Flow Rate | 3 lpm |
| Hose Fitting Gender | Female |
| Valve Type | Poppet |
| Safeway Interchange | BS101-1 |
| Includes Shut Off | Yes |
| Package Quantity | 1 |
