Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series - KVM Tools Inc.KV31A845

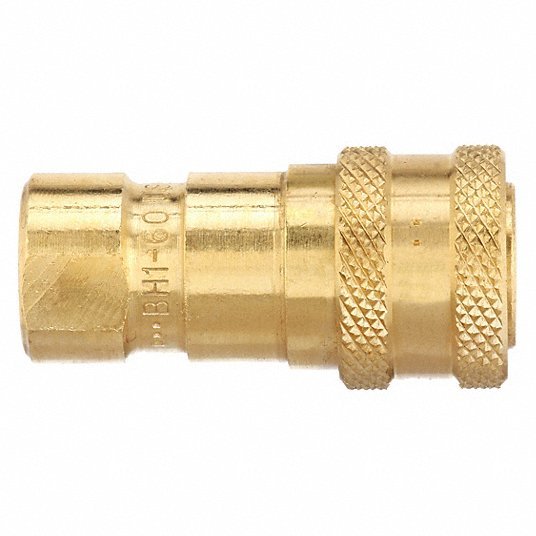

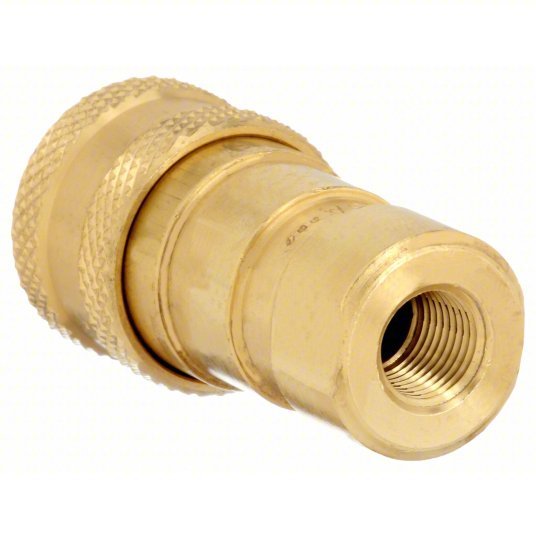

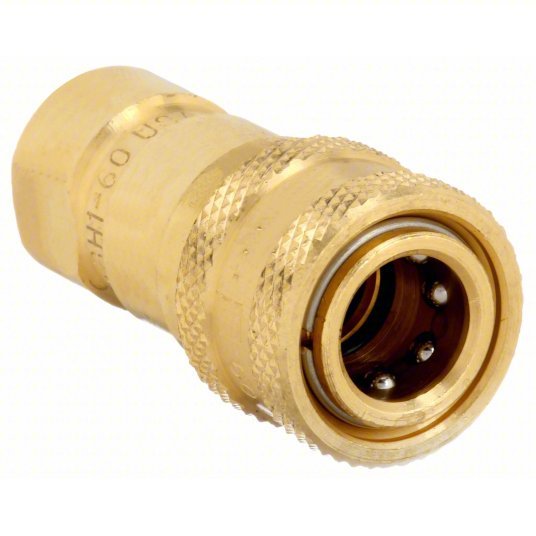

Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series

Name: Parker BH1-60 Hydraulic Quick Connect Hose Coupling, Brass Body, Sleeve Lock, 1/8"-27 Thread Size, 60 Series
Brand: Parker
Price: 59.34 USD
Availability: InStock

UPC: 997966001557 | Harmonization / Schedule B : 8481.80.1095

Country of Origin: United States | Shipping Weight: 0.35 lbs

$59.34 - $59.34

$59.34

$59.34 - $59.34

$59.34

Hydraulic Quick Connect Hose Coupling, Socket, 60 Series, Brass, Coupling Size 1/8 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 3 lpm

Item	Hydraulic Quick Connect Hose Coupling
Quick Coupler Type	Hydraulic Coupler Body
Coupler Interchange Type	ISO 7241-1 Series B
Connection Type	NPTF
Coupler Flow Rate	0.8 gpm
Max. Pressure	1000 psi
Coupler Body Material	Brass
Sleeve Material	Brass
Coupler Finish	Plain
Series	60
Body Material	Brass
Coupling Locking Type	Sleeve
Includes	Sleeve-Lock, Steam, Valve Actuator
Seal Material	Nitrile
Bearing Material	Stainless Steel
Standards	ISO 7241-1 Series B
Valve Design	Poppet
Locking Mechanism	Ball
Shut Off	double
Parker Interchange	BH1-60
Operating Temp. Range	-40 Degrees to 250 Degrees F
Coupler Connection Type	FNPT
For Use With	ISO 7241-1 Series B Nipple
Hansen Interchange	B1-H11
Max. Working Pressure @ 70 F	3,000 psi
Includes Valve	Yes
Coupling Component	Socket
Fitting Type	Female NPTF
Safeway Interchange	BS105-1
Hose Fitting Gender	Female
Max. Flow Rate	3 lpm
Includes Bearing	Yes
Valve Type	Poppet
Finish/Coating	Plain
Snap-Tite Interchange	B72C2-2F
Includes Shut Off	Yes
Package Quantity	1
