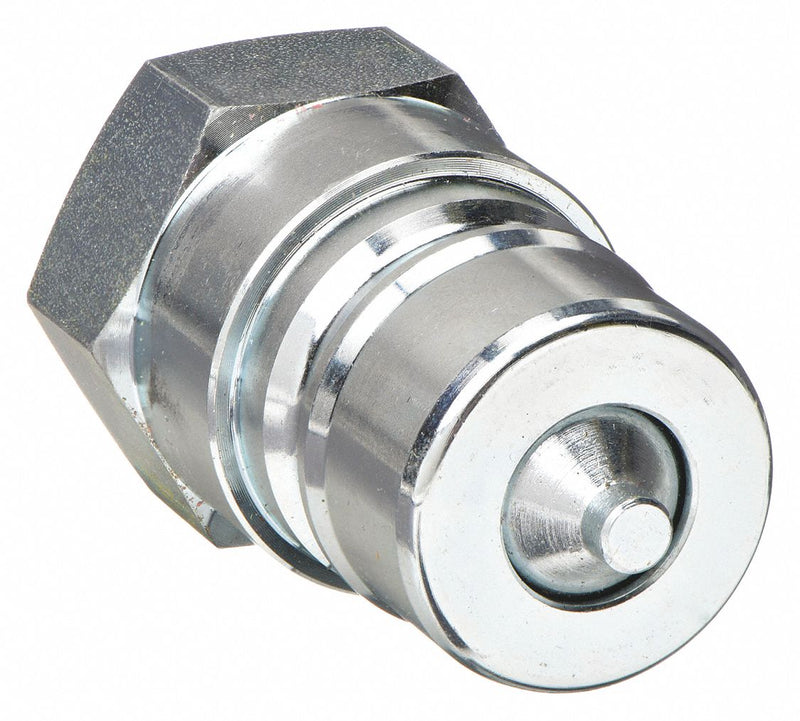

Parker 6602-8-10 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-8-10 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 0.25 lbs

$39.21 - $39.21
$39.21
$39.21 - $39.21
$39.21

Hydraulic Quick Connect Hose Coupling, Plug, 6100 Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45.42 lpm

Thread Size 1/2"-14
Length 2-3/32"
Coupler Body Size 1/2"
Coupler Thread Size 1/2"-14
Overall Length 2 1/16 in
Coupling Size 1/2 in
Max. Outside Dia. 1 1/4 in
Wire Rope Length 2 1/16 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
Shut Off Doble
For Use With ISO 7241-1 Series A Coupler
Series 6100
Parker Interchange 6602-8-10
Valve Design Poppet
Standards ISO 7241-1 Series A
Locking Mechanism Ball
Coupler Body Material Steel
Coupler Interchange Type ISO 7241-1 Series A
Operating Temp. Range -40 Degrees to 250 Degrees F
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Finish Zinc Plated
Coupler Connection Type FNPT
Coupler Flow Rate 12.0 gpm
Bearing Material Stainless Steel
Hansen Interchange HA-15232-00
Coupling Component Plug
Finish/Coating Plain
Includes Bearing Yes
Includes Valve Yes
Max. Working Pressure @ 70 F 4,000 psi
Fitting Type Female NPTF
Snap-Tite Interchange 61N8-8F
Safeway Interchange S561-4
Includes Shut Off Yes
Valve Type Poppet
Hose Fitting Gender Female
Max. Flow Rate 45.42 lpm
Country of Origin Korea, Republic of
