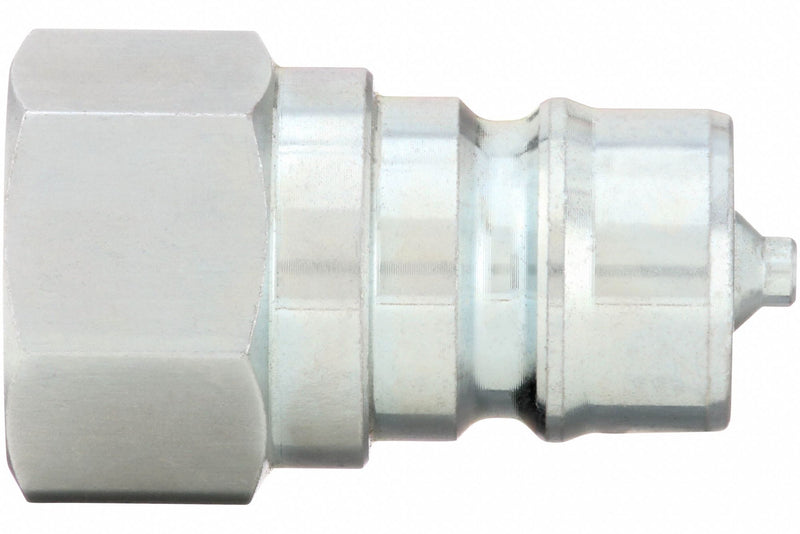

Parker 6602-6-6 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-6-6 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 0.1 lbs

$40.01 - $40.01
$40.01
$40.01 - $40.01
$40.01

Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 22.71 lpm

Thread Size 3/8"-18
Length 1-5/8"
Coupler Thread Size 3/8"-18
Coupler Body Size 3/8"
Overall Length 1 5/8 in
Coupling Size 3/8 in
Max. Outside Dia. 1 in
Wire Rope Length 1 5/8 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Coupler
Series 6600
Parker Interchange 6602-6-6
Bearing Material Stainless Steel
Coupler Body Material Steel
Locking Mechanism Ball
Coupler Interchange Type ISO 7241-1 Series A
Operating Temp. Range -40 Degrees to 250 Degrees F
Standards ISO 7241-1 Series A
Coupler Flow Rate 6.0 gpm
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Connection Type FNPT
Valve Design Poppet
Coupler Finish Zinc Plated
Hansen Interchange HA-15222-00
Coupling Component Plug
Includes Bearing Yes
Finish/Coating Plain
Max. Flow Rate 22.71 lpm
Valve Type Poppet
Snap-Tite Interchange 61N6-6F
Includes Valve Yes
Safeway Interchange S561-3
Includes Shut Off Yes
Max. Working Pressure @ 70 F 4,000 psi
Fitting Type Female NPTF
Hose Fitting Gender Female
Country of Origin Korea, Republic of
