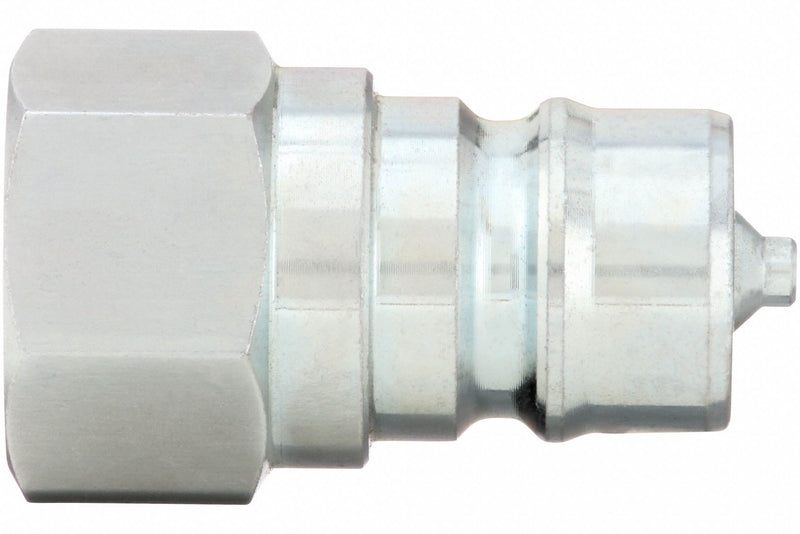

Parker 6602-4-4 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-4-4 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: United States | Shipping Weight: 0.005 lbs

$26.80 - $26.80
$26.80
$26.80 - $26.80
$26.80

Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 11.36 lpm

Thread Size 1/4"-18
Length 1-9/64"
Coupler Body Size 1/4"
Coupler Thread Size 1/4"-18
Overall Length 1 7/16 in
Coupling Size 1/4 in
Max. Outside Dia. 7/8 in
Wire Rope Length 1 7/16 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 5000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Coupler
Series 6600
Coupler Flow Rate 3.0 gpm
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Body Material Steel
Standards ISO 7241-1 Series A
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Interchange Type ISO 7241-1 Series A
Valve Design Poppet
Bearing Material Stainless Steel
Coupler Finish Zinc Plated
Parker Interchange 6602-4-4
Locking Mechanism Ball
Coupler Connection Type FNPT
Hansen Interchange HA-15212-00
Coupling Component Plug
Max. Working Pressure @ 70 F 5,000 psi
Hose Fitting Gender Female
Valve Type Poppet
Safeway Interchange S561-2
Includes Bearing Yes
Includes Valve Yes
Fitting Type Female NPTF
Finish/Coating Plain
Max. Flow Rate 11.36 lpm
Snap-Tite Interchange 61N4-4F
Includes Shut Off Yes
Country of Origin United States
