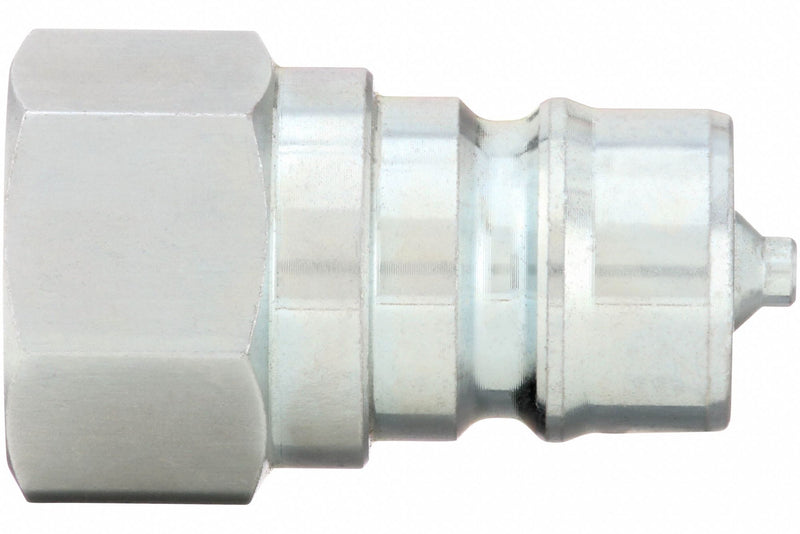

Parker 6602-16-16 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-16-16 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 0.75 lbs

$86.84 - $86.84
$86.84
$86.84 - $86.84
$86.84

Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 1 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 189.27 lpm

Thread Size 1"-11 1/2
Length 3-7/64"
Coupler Body Size 1"
Coupler Thread Size 1"-11-1/2
Overall Length 3 1/8 in
Max. Outside Dia. 1 7/8 in
Coupling Size 1 in
Wire Rope Length 3 1/8 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Coupler
Series 6600
Coupler Body Material Steel
Valve Design Poppet
Locking Mechanism Ball
Coupler Flow Rate 50.0 gpm
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Finish Zinc Plated
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Connection Type FNPT
Coupler Interchange Type ISO 7241-1 Series A
Parker Interchange 6602-16-16
Standards ISO 7241-1 Series A
Bearing Material Stainless Steel
Hansen Interchange HA-15252-00
Includes Bearing Yes
Snap-Tite Interchange 61N16-16F
Max. Flow Rate 189.27 lpm
Valve Type Poppet
Safeway Interchange S561-8
Includes Valve Yes
Coupling Component Plug
Hose Fitting Gender Female
Max. Working Pressure @ 70 F 4,000 psi
Includes Shut Off Yes
Fitting Type Female NPTF
Finish/Coating Plain
Country of Origin Korea, Republic of
