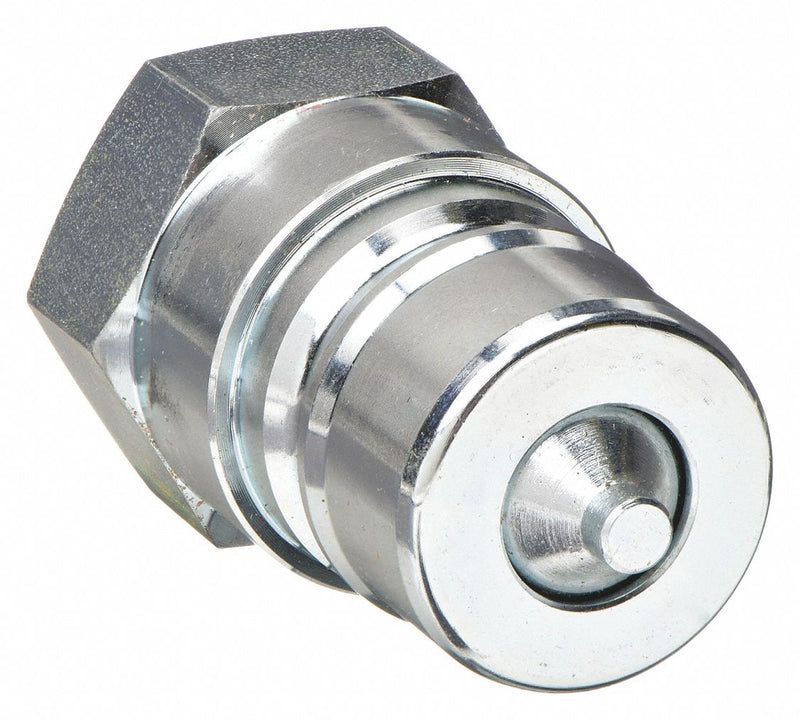

Parker 6602-12-12 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-12-12 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 0.5 lbs

$65.95 - $65.95
$65.95
$65.95 - $65.95
$65.95

Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 106 lpm

Thread Size 3/4"-14
Length 2-9/16"
Coupler Thread Size 3/4"-14
Coupler Body Size 3/4"
Overall Length 2 9/16 in
Coupling Size 3/4 in
Max. Outside Dia. 1 5/8 in
Wire Rope Length 2 9/16 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
Shut Off double
For Use With ISO 7241-1 Series A Coupler
Series 6600
Standards ISO 7241-1 Series A
Parker Interchange 6602-12-12
Coupler Interchange Type ISO 7241-1 Series A
Coupler Body Material Steel
Bearing Material Stainless Steel
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Finish Zinc Plated
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Connection Type FNPT
Locking Mechanism Ball
Coupler Flow Rate 28.0 gpm
Valve Design Poppet
Hansen Interchange HA-15242-00
Finish/Coating Plain
Max. Flow Rate 106 lpm
Coupling Component Plug
Snap-Tite Interchange 61N12-12F
Includes Shut Off Yes
Includes Valve Yes
Fitting Type Female NPTF
Includes Bearing Yes
Valve Type Poppet
Safeway Interchange S561-6
Max. Working Pressure @ 70 F 4,000 psi
Hose Fitting Gender Female
Country of Origin Korea, Republic of
