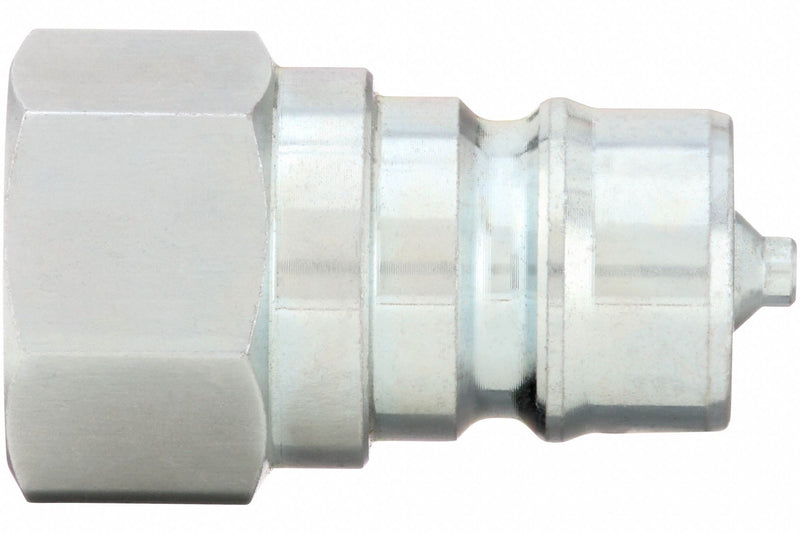

Parker 6602-12-10 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

Parker 6602-12-10 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 0.35 lbs

$60.26 - $60.26
$60.26
$60.26 - $60.26
$60.26

Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45.42 lpm

Thread Size 3/4"-14
Length 2-5/16"
Coupler Thread Size 3/4"-14
Coupler Body Size 1/2"
Overall Length 2 5/16 in
Coupling Size 1/2 in
Max. Outside Dia. 1 5/8 in
Wire Rope Length 2 5/16 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Coupler
Series 6600
Coupler Flow Rate 12.0 gpm
Standards ISO 7241-1 Series A
Coupler Body Material Steel
Quick Coupler Type Hydraulic Coupler Nipple
Parker Interchange 6602-12-10
Coupler Connection Type FNPT
Coupler Interchange Type ISO 7241-1 Series A
Locking Mechanism Ball
Coupler Finish Zinc Plated
Operating Temp. Range -40 Degrees to 250 Degrees F
Bearing Material Stainless Steel
Valve Design Poppet
Snap-Tite Interchange 61N8-12F
Max. Working Pressure @ 70 F 4,000 psi
Valve Type Poppet
Includes Bearing Yes
Includes Shut Off Yes
Hose Fitting Gender Female
Coupling Component Plug
Max. Flow Rate 45.42 lpm
Finish/Coating Plain
Includes Valve Yes
Fitting Type Female NPTF
Country of Origin Korea, Republic of
