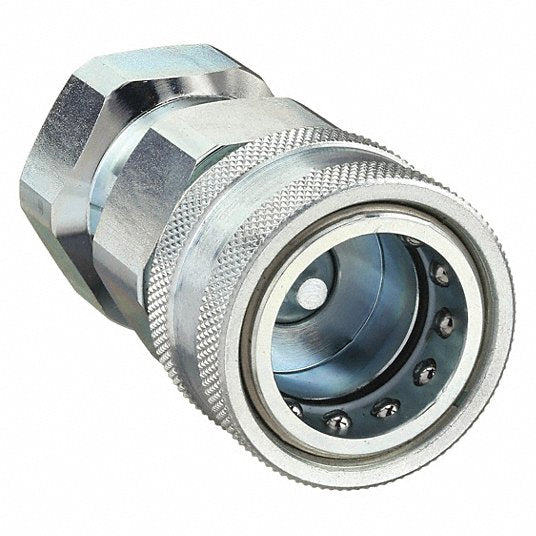

Parker 6601-6-6 Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 22.71 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 22.71 lpm

Coupler Interchange Type	ISO 7241-1 Series A
Connection Type	NPTF
Seal Material	Nitrile
Coupler Flow Rate	6.0 gpm
Max. Pressure	4000 psi
Coupler Body Material	Steel
Sleeve Material	Steel
Coupler Finish	Zinc Plated
Series	6600
For Use With	ISO 7241-1 Series A Nipple
Body Material	Steel
Coupling Locking Type	Sleeve
Valve Design	Poppet
Bearing Material	Stainless Steel
Coupler Connection Type	FNPT
Locking Mechanism	Ball
Operating Temp. Range	-40 Degrees to 250 Degrees F
Parker Interchange	6601-6-6
Standards	ISO 7241-1 Series A
Hansen Interchange	HA-15221-00
Includes Shut Off	Yes
Includes Bearing	Yes
Max. Working Pressure @ 70 F	4,000 psi
Includes Valve	Yes
Valve Type	Poppet
Fitting Type	Female NPTF
Snap-Tite Interchange	61C6-6F
Safeway Interchange	S565-3
Max. Flow Rate	22.71 lpm
Coupling Component	Socket
Hose Fitting Gender	Female
Finish/Coating	Plain
