Parker 6601-4-4 Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, 6600 Series - KVM Tools Inc.KV31A825

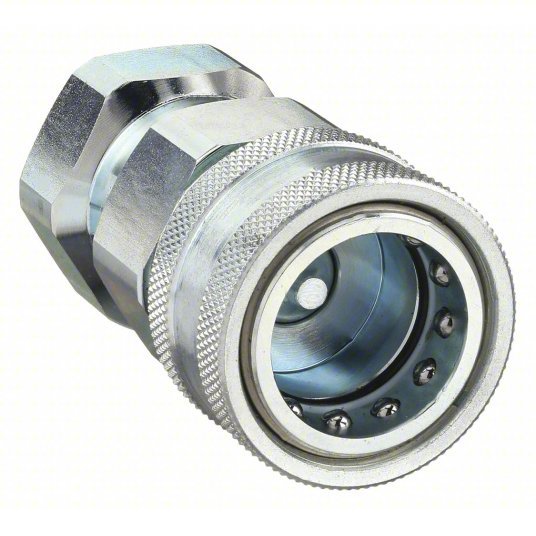

Parker 6601-4-4 Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1/4"-18 Thread Size, 6600 Series

UPC: 066010000041 | Harmonization / Schedule B : 8481.20.0050

Country of Origin: | Shipping Weight:

$47.42 - $47.42
$47.42
$47.42 - $47.42
$47.42
Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 11.36 lpm
Quick Coupler Type Hydraulic Coupler Body
Coupler Interchange Type ISO 7241-1 Series A
Connection Type NPTF
Coupler Flow Rate 3.0 gpm
Max. Pressure 5000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Zinc Plated
Series 6600
Body Material Steel
Coupling Locking Type Sleeve
Bearing Material Stainless Steel
Parker Interchange 6601-4-4
Standards ISO 7241-1 Series A
For Use With ISO 7241-1 Series A Nipple
Seal Material Nitrile
Valve Design Poppet
Locking Mechanism Ball
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Connection Type FNPT
Hansen Interchange HA-15211-00
Includes Valve Yes
Includes Bearing Yes
Fitting Type Female NPTF
Snap-Tite Interchange 61C4-4F
Max. Working Pressure @ 70 F 5,000 psi
Finish/Coating Plain
Safeway Interchange S565-2
Includes Shut Off Yes
Coupling Component Socket
Max. Flow Rate 11.36 lpm
Hose Fitting Gender Female
Valve Type Poppet
