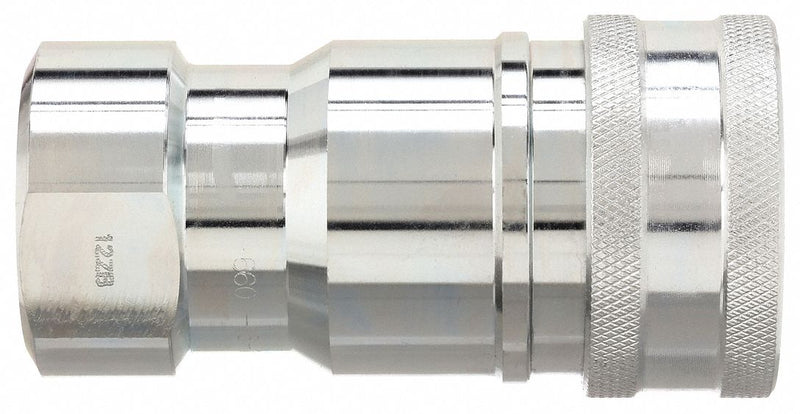

Parker 6601-16-16 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

Parker 6601-16-16 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 1.9 lbs

$206.00 - $206.00
$206.00
$206.00 - $206.00
$206.00

Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 189.27 lpm

Thread Size 1"-11 1/2
Length 4-1/8"
Coupler Thread Size 1"-11-1/2
Coupler Body Size 1"
Overall Length 4 1/8 in
Coupling Size 1 in
Max. Outside Dia. 2 1/8 in
Wire Rope Length 4 1/8 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
Shut Off double
For Use With ISO 7241-1 Series A Nipple
Sleeve Material Steel
Includes Sleeve Lock
Series 6600
Parker Interchange 6601-16-16
Standards ISO 7241-1 Series A
Coupler Flow Rate 50.0 gpm
Bearing Material Stainless Steel
Locking Mechanism Ball
Coupler Body Material Steel
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Finish Zinc Plated
Coupler Interchange Type ISO 7241-1 Series A
Valve Design Poppet
Quick Coupler Type Hydraulic Coupler Body
Coupler Connection Type FNPT
Hansen Interchange HA-15251-00
Finish/Coating Plain
Snap-Tite Interchange 61C16-16F
Includes Shut Off Yes
Max. Working Pressure @ 70 F 4,000 psi
Includes Bearing Yes
Valve Type Poppet
Hose Fitting Gender Female
Safeway Interchange S565-8
Coupling Component Socket
Max. Flow Rate 189.27 lpm
Fitting Type Female NPTF
Includes Valve Yes
Country of Origin Korea, Republic of
