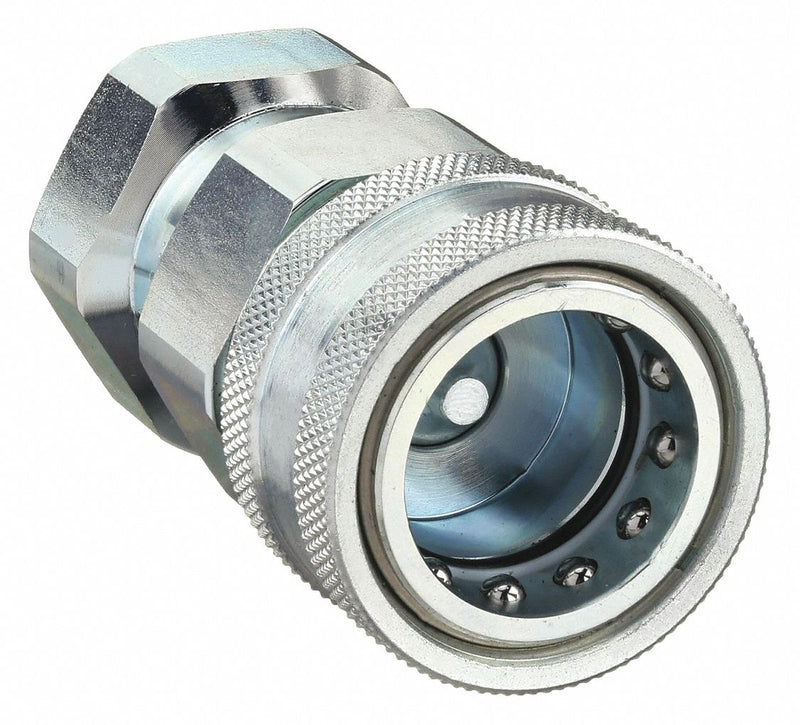

Parker 6601-12-12 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

Parker 6601-12-12 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: South Korea | Shipping Weight: 1.4 lbs

$140.30 - $140.30
$140.30
$140.30 - $140.30
$140.30

Hydraulic Quick Connect Hose Coupling, Socket, 6100 Series, Steel, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 105.99 lpm

Thread Size 3/4"-14
Length 3-23/64"
Coupler Body Size 3/4"
Coupler Thread Size 3/4"-14
Overall Length 3 3/8 in
Coupling Size 3/4 in
Max. Outside Dia. 1 15/16 in
Wire Rope Length 3 3/8 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Nipple
Sleeve Material Steel
Series 6100
Quick Coupler Type Hydraulic Coupler Body
Coupler Finish Zinc Plated
Parker Interchange 6601-12-12
Coupler Body Material Steel
Coupler Flow Rate 28.0 gpm
Valve Design Poppet
Bearing Material Stainless Steel
Operating Temp. Range -40 Degrees to 250 Degrees F
Coupler Interchange Type ISO 7241-1 Series A
Coupler Connection Type FNPT
Locking Mechanism Ball
Standards ISO 7241-1 Series A
Hansen Interchange HA-15241-00
Includes Valve Yes
Includes Shut Off Yes
Coupling Component Socket
Includes Bearing Yes
Hose Fitting Gender Female
Max. Working Pressure @ 70 F 4,000 psi
Max. Flow Rate 105.99 lpm
Fitting Type Female NPTF
Safeway Interchange S565-6
Finish/Coating Plain
Valve Type Poppet
Snap-Tite Interchange 61C12-12F
Country of Origin Korea, Republic of
