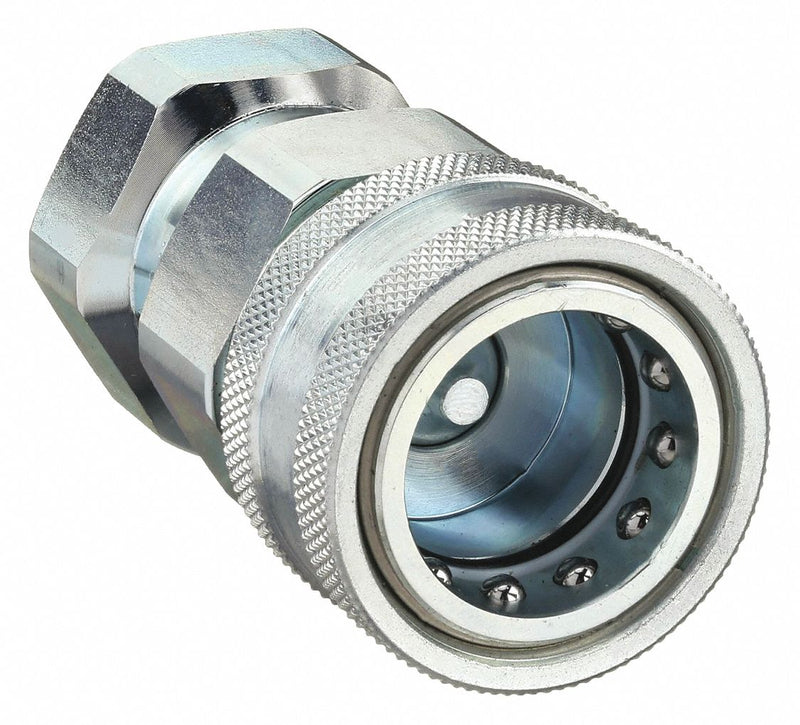

Parker 6601-12-10 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

Parker 6601-12-10 Hydraulic Quick Connect Hose Coupling, Socket x Female NPT Threaded, Steel, Socket, Sleeve

UPC: | Harmonization / Schedule B : 8481.20.0050

Country of Origin: United States | Shipping Weight: 0.8 lbs

$122.77 - $122.77
$122.77
$122.77 - $122.77
$122.77

Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45.42 lpm

Thread Size 3/4"-14
Length 2-7/8"
Coupler Thread Size 3/4"-14
Coupler Body Size 1/2"
Overall Length 2 7/8 in
Coupling Size 1/2 in
Max. Outside Dia. 1 1/2 in
Wire Rope Length 2 7/8 in
Body Material Steel
Seal Material Buna-N
Coupling Locking Type Sleeve
Max. Pressure 4000 psi
Connection Type Threaded
For Use With ISO 7241-1 Series A Nipple
Sleeve Material Steel
Series 6600
Coupler Body Material Steel
Locking Mechanism Ball
Coupler Flow Rate 12.0 gpm
Quick Coupler Type Hydraulic Coupler Body
Parker Interchange 6601-12-10
Coupler Connection Type FNPT
Operating Temp. Range -40 Degrees to 250 Degrees F
Valve Design Poppet
Bearing Material Stainless Steel
Coupler Interchange Type ISO 7241-1 Series A
Standards ISO 7241-1 Series A
Coupler Finish Zinc Plated
Fitting Type Female NPTF
Includes Bearing Yes
Hose Fitting Gender Female
Max. Flow Rate 45.42 lpm
Coupling Component Socket
Includes Shut Off Yes
Includes Valve Yes
Valve Type Poppet
Finish/Coating Plain
Snap-Tite Interchange 61C8-12F
Max. Working Pressure @ 70 F 4,000 psi
Country of Origin United States
