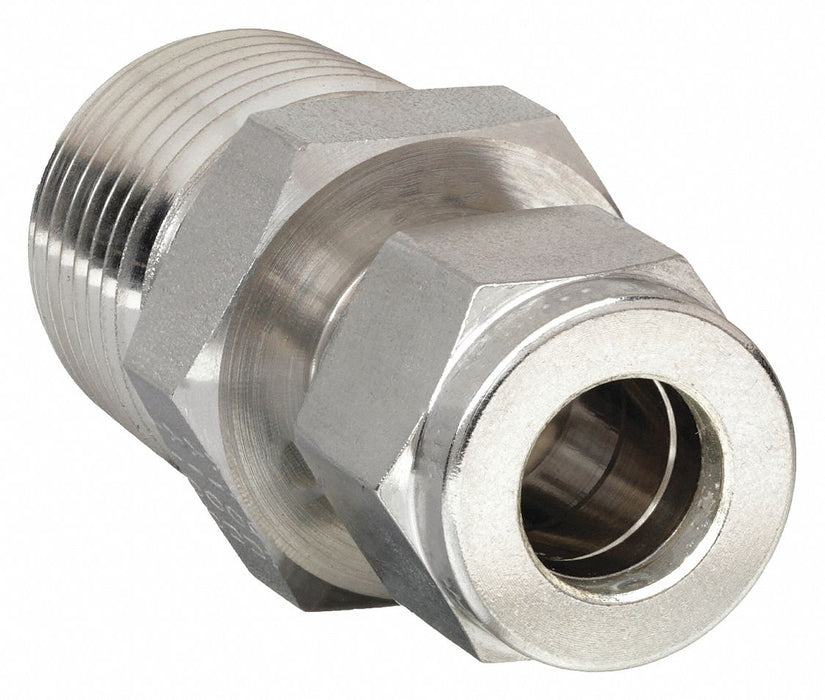

Parker 4MSC8N-316 A-LOK 1/4 OD x 1/2 MNPT 316 SS Fitting

Parker 4MSC8N-316 A-LOK Compression Fitting Adapter, 1/4 in OD x 1/2 in MNPT, 316 SS, Male Connector

UPC: | Harmonization / Schedule B : 7307.29.0090

Country of Origin: United States | Shipping Weight: 0.2 lbs

$61.49 - $61.49
$61.49
$61.49 - $61.49
$61.49

Compression Fitting Adapter, Application Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/4 in, Material Grade 316, Maximum Operating Pressure 10,300 psi, Maximum Operating Temperature 649 Degrees C, Overall Length 1 3/4 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/2 in

Basic Pipe Fitting Shape Adapter
Specific Pipe Fitting Shape Connector
Fitting Connection Type A-LOK(R) x MNPT
Specific Fitting Shape Straight Adapter
Basic Pipe Fitting Material Metal
Max. Pressure 6600 psi
Standards ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506
Temp. Range -425 Degrees to 1200 Degrees F
Tube Fitting Material 316 Stainless Steel
Maximum Operating Temperature 649 Degrees C
Compatible Tube Material Stainless Steel
Compatible Fitting Brands Parker A-LOK
Resistance Properties Corrosion-Resistant, Gall-Resistant
System of Measurement Imperial
Application Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam
Maximum Operating Pressure 10,300 psi
Fitting Side A Connection Type Compression
Fitting Side B Connection Type MNPT
Material Grade 316
Fitting Material Stainless Steel
Fitting Side A Tube Outer Diameter 1/4 in
Fitting Side B Pipe Size 1/2 in
Overall Length 1 3/4 in
Country of Origin United States
