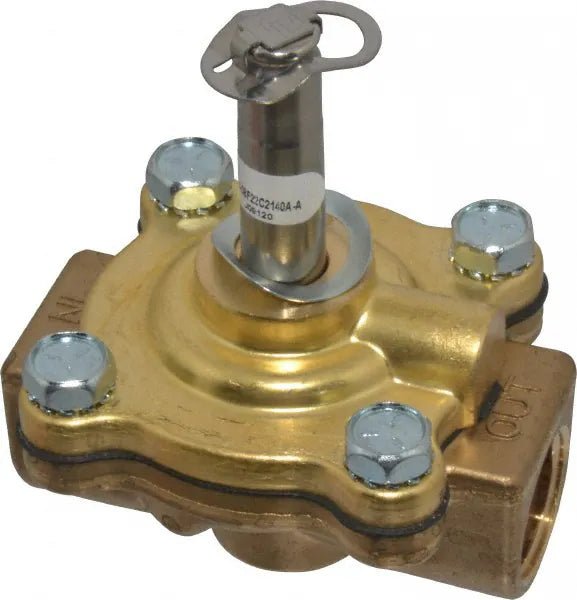

Parker 08F22C2140AAF Gold Ring Valve™ Series 22, 23, 24 & 28 Two-Way Internally Pilot-Operated Valve

UPC: 694777021698 | Harmonization (Schedule B): 8481.80.9005

SKU KV68014174
Original price $272.10 - Original price $272.10
Original price
$272.10
$272.10 - $272.10
Current price $272.10

Normally Closed, Brass, NBR Seal, 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac & 240/60 to 220/50Vac

Valve Type Two-Way; Piloted; Diaphragm
Port Size 1/2 in
Valve Unactuated State Normally Closed
Thread Standard NPT
Body Material Brass
Seal Material NBR
Voltage 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC
Maximum Working Pressure (Psi - 3 Decimals) 200
Cv Factor Nc 4.0000
Overall Height (Decimal Inch) 3.3400
Overall Length (Decimal Inch) 2.7600
Orifice Size (Decimal Inch) 0.6250
Orifice Size 5/8
Standards UL Listed; NEMA 4X; CSA Certified
Cv Rating 4.000
Coil Included Yes
Special Item Information Solenoid coils not included
Applications Gases; Light Oils; Fluids
Wattage 6
ASCO Number 8210G2
Minimum Operating Pressure Differential 5
Maximum Temperature (F) ( - 0 Decimals) 180
Type Of Power AC
Maximum Temperature (C) 180
