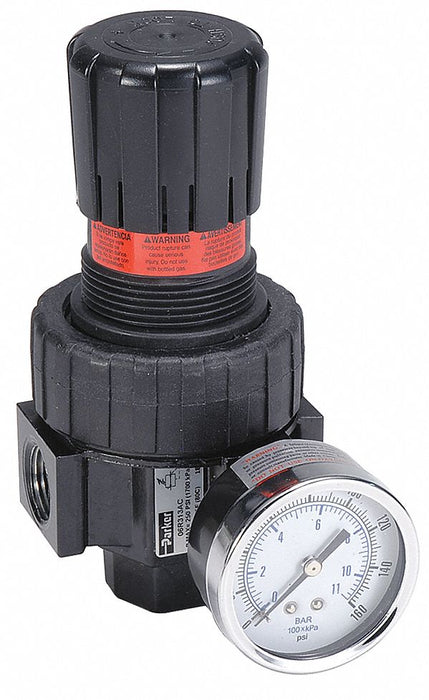

Parker 06R118AC Compressed Air Regulator

Parker 06R118AC Compressed Air Regulator, 1/4 in NPT, 53 cfm, 2-125 psi, Zinc, 06R Series

UPC: | Harmonization / Schedule B : 8481.10.0060

Country of Origin: United States | Shipping Weight: 2.35 lbs

$174.29 - $174.29
$174.29
$174.29 - $174.29
$174.29

Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 53 cfm, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 175 Degrees F, Pressure Gauge Included Yes, Adjustment Mechanism Knob, Overall Width 2-3/4 in, Adjustment Location Top, System Location Air Line, Series 06R, Adjustment Mechanism Material Steel, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Zinc, For Fluid Type Air.

Series 06R
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Regulator Type Relieving
Valve Design Balanced
Body Material Zinc
Material Zinc/Plastic
Adjustment Mechanism Knob
Adjustment Mechanism Material Steel
Adjustment Knob Nonrising
Adjustment Location Top
Adjustment Range 0 to 125 psi
Seal Material Nitrile
For Fluid Type Air
For Substance Type Air
System Location Air Line
Max. Inlet Pressure 250 psi
Maximum Regulated Pressure 125 psi
Minimum Regulated Pressure 2 psi
Maximum Operating Pressure 125 psi
Minimum Operating Pressure 18 psig
Maximum Operating Temperature 175 °F
Minimum Operating Temperature 32 °F
Maximum Flow Rate 53 cfm
Air Inlet Size 1/4 in NPT
Air Inlet Gender Female
Air Outlet Size 1/4 in
Air Outlet Type NPT
Air Outlet Gender Female
Number of Air Inlets 1
Number of Air Outlets 1
Pressure Gauge Included Yes
Pressure Gauge Port Size 1/4 in
Pressure Gauge Port Type NPT
Gauge Port 1/4 in NPT
Includes (2) Gauge Plugs and Face Gauge; Regulator
Modular Connection Modular Connection
Overall Height 6 in
Overall Width 2-3/4 in
Overall Depth 2-13/16 in
Weight 1.6 lb
Country of Origin United States
