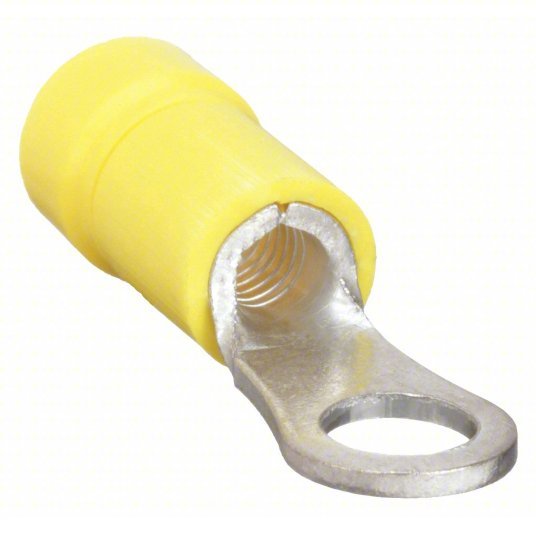

Panduit PV10-10R-L Ring Terminal #10 Stud Size, 12 AWG to 10 AWG Wire Size Range, 50 PK

Ring Terminal, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Tongue Width 0.31 in, Contact Material Copper, Standards CSA C22.2 No. 65, UL486A-486B, Overall Length 1.05 in, Package Quantity 50

Wire Range	12 AWG to 10 AWG
Insulation Type	Vinyl
Insulation Color	Yellow
UPC	74983801329
Standards	CSA C22.2 No. 65, UL486A-486B
Max. Voltage	600 V
Seam	Brazed
Connection Material	Copper
Max. Temp.	221 Degrees F
Terminal Type	Ring Tongue
Features	Funnel Entry
For Use With	CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Maximum Voltage	600 V
Insulation Dia	0.23 in
Connector Type	Ring Terminal Termination Point
Connector Plating	Tin
Insulation Material	Vinyl
Product Color	Yellow
Package Type	Bulk
Contact Material	Copper
Environmentally Friendly	Yes
Connector Details	1 x Ring Terminal Termination Point
Product Type	Terminal Connector
Product Name	Terminal Connector
Maximum Voltage (V)	600
Flammability Rating	UL94V-0
Maximum Operating Temperature (°F)	221
Seam Type	Brazed
Barrel Type	Funnel
Standards Met	cULus Listed 587H E52164, CSA Certified LR31212
Packaging Type	Bottle
Sub Brand	Pan-Term®
Maximum Operating Temperature (°C)	105
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated
Base Material	Copper
Color Code	Yellow
Seam Style	Brazed
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
