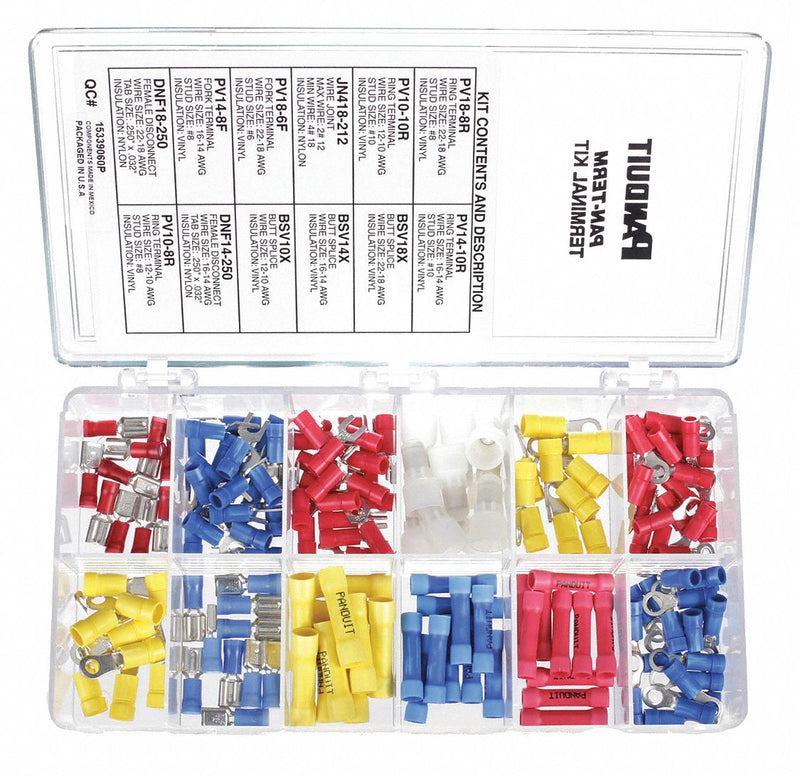

Panduit KP-1075Y Wire Terminal Kit, 160 Pieces, 22 AWG – 10 AWG Wire Sizes

Panduit KP-1075Y Wire Terminal Kit, 160 Pieces, 22 AWG – 10 AWG Wire Sizes

UPC: 074983797455 | Harmonization / Schedule B : 8536.69.4040

Country of Origin: Mexico | Shipping Weight: 0.2 lbs

$132.65 - $132.65
$132.65
$132.65 - $132.65
$132.65

Wire Terminal Kit, For Conductor Material Copper, Insulation Material None, Minimum Wire Size 22 AWG, Maximum Wire Size 10 AWG, Number of Pieces 160, Manufacture Model Numbers Included BSV10X, BSV14X, BSV18X, DNF14-250, DNF18-250, JN418-212, PV10-10R, PV10-8R, PV14-10R, PV14-8F, PV18-6F, PV18-8R, Barrel Style Internally Bevelled, Connector Assortment Type Crimp Terminals, For Conductor Type Solid Copper, Stranded Copper

Maximum Wire Size 10 AWG
Minimum Wire Size 22 AWG
Sizes Included BSV10X, BSV14X, BSV18X, DNF14 to 250, DNF18 to 250, JN418 to 212, PV10 to 10R, PV10 to 8R, PV14 to 10R, PV14 to 8F, PV18 to 6F, PV18 to 8R
Number of Sizes 12
Overall Length 11 in
Termination Style Crimp Termination Only
Insulation Color Assorted
Insulation Coverage None
Insulation Type Bare
Kit Type Terminal
Number of Pieces 160
Connection Type Crimp
Terminal Type Butt Splice Connectors, Closed-End Crimp Connectors, Ring Terminals
Description/Special Features Plastic Box, Wire In Maintenance and Construction Applications
Wire Range 22 to 10 AWG
Wire Type Solid Copper, Stranded Copper
Terminal Connection Crimp
Includes (10) BSV10X Vinyl Butt Splices, (10) BSV14X, (10) BSV18X, (10) DNF14-250, (10) DNF18-250 Nylon Disconnects, (10) JN418-212 Nylon Wire Joints, (10) PV10-10R Vinyl Ring Terminals, (10) PV10-8R, (20) PV14-10R, (20) PV14-8F Vinyl Fork Terminals, (20) PV18-6F, (20) PV18-8R, Plastic Box
Connector Assortment Type Crimp Terminals
For Conductor Type Solid Copper, Stranded Copper
Barrel Style Internally Bevelled
For Conductor Material Copper
Manufacture Model Numbers Included BSV10X, BSV14X, BSV18X, DNF14-250, DNF18-250, JN418-212, PV10-10R, PV10-8R, PV14-10R, PV14-8F, PV18-6F, PV18-8R
Insulation Material None
Application Ideal for maintenance and construction wiring
Note KP-1075Y replaces KP-1075
Sub Brand Pan-Term
Country of Origin Mexico
