Panduit BSH18-Q Butt Splice Connector, 22 to 18 AWG, PK25 - KVM Tools Inc.KV39AY20

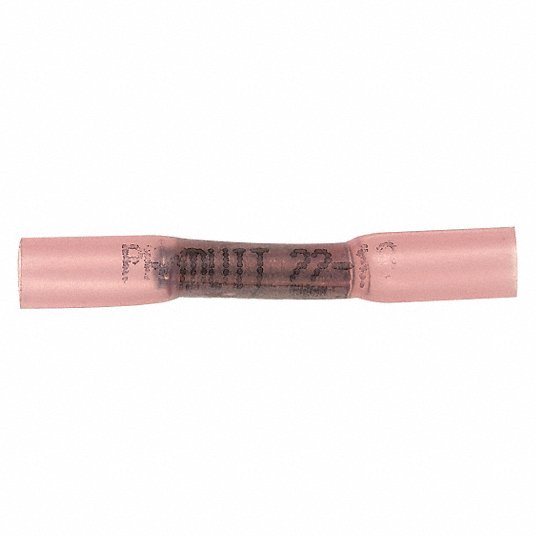

Panduit BSH18-Q Butt Splice Connector, 22 to 18 AWG, PK25

UPC: 074983818235 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.07 lbs

$118.52 - $118.52
$118.52
$118.52 - $118.52
$118.52

Splice Connector, Connection Type Crimp, Insulation Material Polyolefin, Insulation Color Red, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 1.45 in, Seam Style Brazed, Barrel Inside Diameter 0.17 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number CT-310

Item Splice Connector
Wire Range 22 to 18 AWG
Insulation Type Heat Shrink
Seam Seamless
Connection Type Crimp
Insulation Color Red
Color Code Red
Max. Voltage 600 V
Max. Temp. 230 Degrees F
Standards CSA C22.2 No. 65, UL 486C
Connector Type Butt Splice
Connection Material Tin-Plated Copper
Number of Splices 2
Insulation Material Polyolefin
Body Material Copper
Seam Style Brazed
Body Finish Tin Plated
UL Standards UL 486C
Compatible Installation Tool Model Number CT-310
Maximum Operating Temperature 257 Degrees F
Minimum Operating Temperature -65 Degrees F
Termination Style Crimp
Special Features Heat Shrink Polyolefin Sleeve with Hot Melt Adhesive Protects Against Moisture
For Wire Type Stranded
Contact Material Copper
Contact Finish Tin
Maximum Voltage 600 V
Includes Heat Shrink Yes
Barrel ID 0.17 in
Base Material Copper
Maximum Voltage (V) 600
Finish/Coating Tin-Plated
Standards Met BSH18-Q
UL Temperature Rating (°C) 125
Barrel Type Standard
Maximum Voltage (kV) 0.6
CSA Temperature Rating (°C) 125
Product Type Butt Splice
Product Material Copper
Product Color Red
Product Name Heat Shrink Butt Splice
Package Type Bulk
Product Line Pan-Term
Product Model BSH18-Q
Product Series BSH
Environmentally Friendly Yes
UL Temperature Rating (°F) 257
CSA Temperature Rating (°F) 257
Sub Brand Pan-Term®
Package Quantity 25
