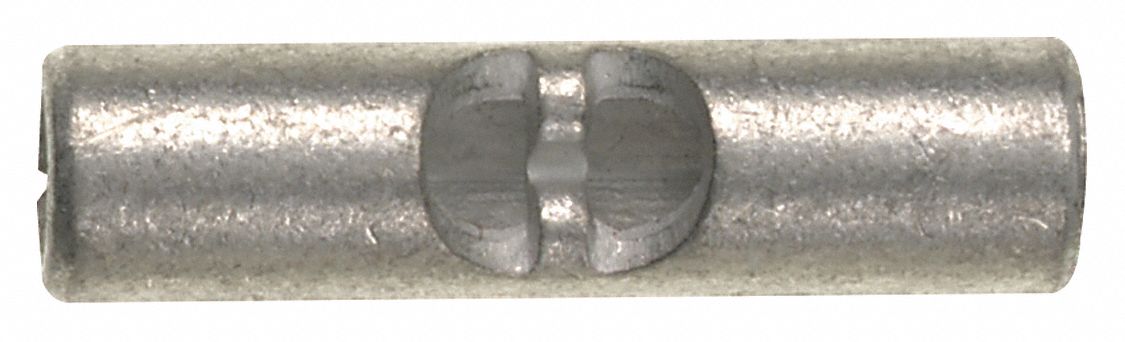

Panduit BS10-L Butt Splice Connector

Panduit BS10-L Bare Butt Splice Connector, 12-10 AWG, Tin-Plated Copper, 2000 V, PK 50

UPC: 074983832040 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.27 lbs

$82.53 - $82.53
$82.53
$82.53 - $82.53
$82.53

Bare butt splice connector for joining 12-10 AWG stranded wires by crimping. Tin-plated copper barrel and contact, no insulation. UL 486C and CSA C22.2 No. 65 compliant. Internal wire stop assures proper insertion length.

Wire Size Range 12-10 AWG
Body Material Copper
Body Finish Tin Plated
Insulation Bare (None)
Max Voltage 2,000 V
Max Operating Temp 302 Degrees F
For Wire Type Stranded
Termination Style Crimp
Strip Length 1/4 in
Overall Length 0.63 in
Package Qty 50
Standards CSA C22.2 No. 65, UL 486C
