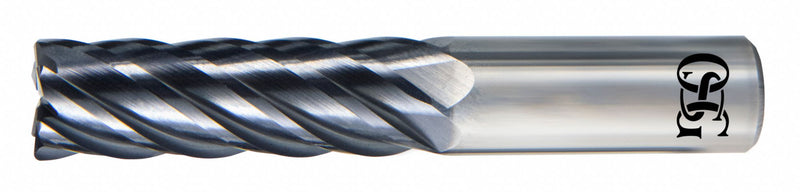

OSG VGM6-0098 Square End Mill, Carbide, EXO Coated, 6 Flute, 5/8" Mill Dia, 1-1/4" LOC, 3-1/2" OAL

OSG VGM6-0098 Square End Mill, Carbide, EXO Coated, 6 Flute, 5/8" Mill Dia, 1-1/4" LOC, 3-1/2" OAL

UPC: | Harmonization / Schedule B : 8207.70.3030

Country of Origin: United States | Shipping Weight: 0.53 lbs

$285.87 - $285.87
$285.87
$285.87 - $285.87
$285.87

Square End Mill, 0.625 in Milling Dia., Carbide, EXO, Non-Coolant Through, Straight, Length of Cut 1.25 in, Overall Length 3 1/2 in, Shank Dia. 5/8 in

Length of Cut 1.25 in
Shank Dia. 5/8 in
Overall Length 3 1/2 in
Milling Dia. 0.625 in
Wire Rope Length 3 1/2 in
Length 3 1/2 in
Number of Flutes 6
Single End/Double End Single
End Mill Cutting Type Center Cutting
Number of Coolant Holes 0
Measurement System Inch
List Number VGM6
Series HY-PRO(R) CARB VGM
For Material Hardness 45 HRC
Secondary Material Application ISO Code H
Finish - Machining EXO
Coolant Fed Non-Coolant Through
End Mill Application Finishing
Secondary Material Application Hardened Steel
Cutting Direction Right Hand
Flute Type Spiral
Material - Machining Carbide
Material Grade - Machining High Performance
Drilling Tool Configuration Individual
Primary Material Application ISO Code H, K, M, P, S
Primary Material Application Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Helix Angle 37 Degrees
Shank Type - Machining Straight
End Mill Style Square
Max. Helix Angle 37 Degrees
Flute Spacing Variable
Country of Origin United States
