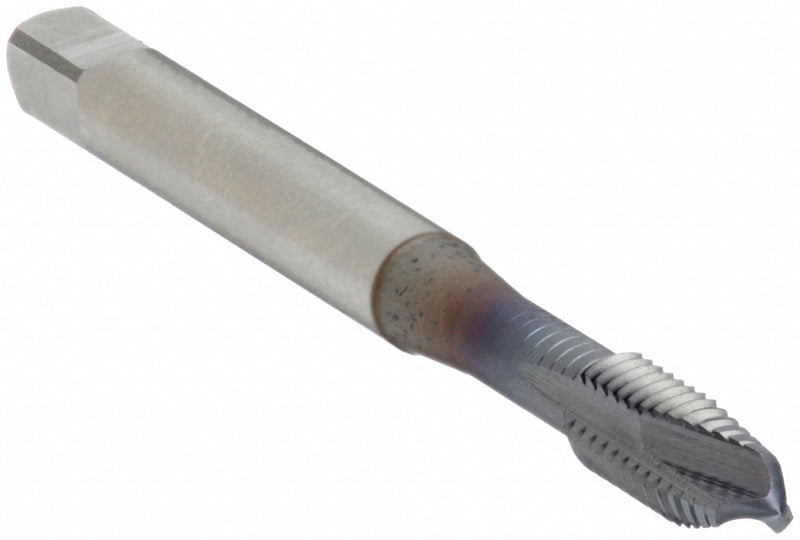

OSG 2817708 Spiral Point Tap, #6-32 UNC, H11, 2 Flute, Plug Chamfer, TiCN Coated Vanadium High Speed Steel

OSG 2817708 Spiral Point Tap, #6-32 UNC, H11, 2 Flute, Plug Chamfer, TiCN Coated Vanadium High Speed Steel

UPC: | Harmonization / Schedule B : 8207.40.3000

Country of Origin: Mexico | Shipping Weight: 0.015 lbs

$27.22 - $27.22
$27.22
$27.22 - $27.22
$27.22

Spiral Point Tap, Thread Size #6-32, UNC, Overall Length 2 in, Vanadium High Speed Steel, TiCN, Right Hand, Thread Length 3/8 in, 75 Percent Thread Drill Size #36, Thread Limit H11, Number of Flutes 2

Shank Dia. 0.141"
Tap Dimension Type Inch
Tap Size #6
Overall Length 2 in
Tap Thread Size #6-32
Thread Length 11/16"
55% Thread Drill Size #32
Shank Length 1 5/16 in
Square Size 0.1090 in
65% Thread Drill Size #34
75% Thread Drill Size #36
Thread Size #6-32
Drill Bit Size 0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in, 0.1136 in
Size #6
Pitch Diameter Limit H11
Square Width 0.109 in
Shank Diameter 9/64 in
Square Length 0.109 in
Wire Rope Length 2 in
Length 2 in
Tap Material High Speed Steel
Tap Chamfer Plug
Tap Style Spiral Point
Number of Flutes 2
Tap Finish TiCN
Tap Thread Type UNC
Standards ANSI
Thread Direction Right Hand
Tap Grouping Tap
Series 280
Cutting Direction - Machining Right Hand
Spiral Direction Neutral
Primary Material Application ISO Code P
Thread Standard UNC
Primary Material Application Steel
Extended Neck Yes
Coolant Fed Non-Coolant Through
Measurement System Pipe
Secondary Material Application Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Threads per Inch 32
Secondary Material Application ISO Code H, K, M, P
Thread Limit H11
Shank Type - Machining Straight
Helix Angle 0 Degrees
Number of Pieces 1
List Number 280
Shank Type Square
Tap Application Through Hole
Country of Origin Mexico
