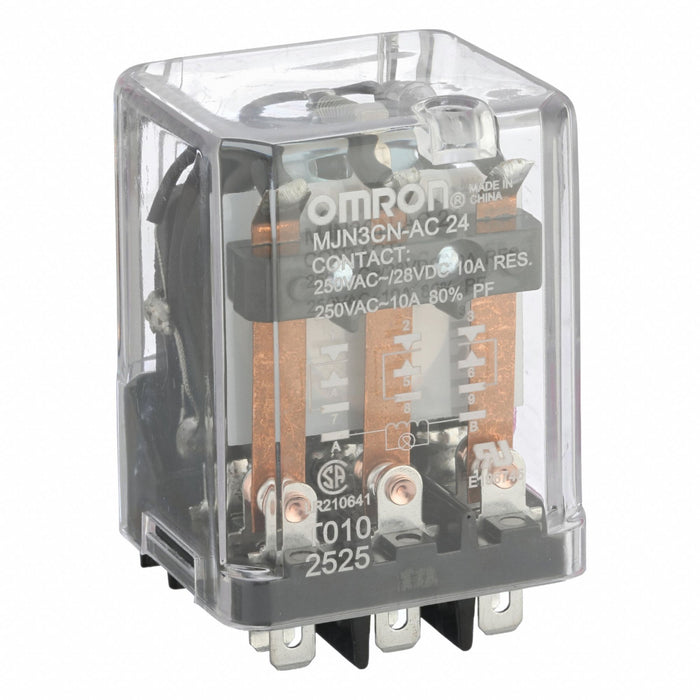

Omron MJN3C-N-AC24 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V AC, 3PDT, 11 Pins/Terminals

Omron MJN3C-N-AC24 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V AC, 3PDT, 11 Pins/Terminals

UPC: | Harmonization / Schedule B : 8536.49.0080

Country of Origin: China | Shipping Weight: 0.6 lbs

$50.88 - $50.88
$50.88
$50.88 - $50.88
$50.88

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.187 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 120/240/277/480/600V, 15 A @ 480/600V, 20 A @ 120/240/277V, 3 A @ 480/600V, Contact Rating (DC) 10 A @ 28V, 20 A @ 28V, 30 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In

Mounting Style Plug-In
Electrical Connection Quick-Connect
Base Shape Square
Number of Pins 11
Coil Voltage 24V AC
Current Rating 10 A
Contact Form 3PDT
Contact Rating (AC) 10 A @ 120/240/277/480/600V, 15 A @ 480/600V, 20 A @ 120/240/277V, 3 A @ 480/600V
Contact Rating (DC) 10 A @ 28V, 20 A @ 28V, 30 A @ 28V
HP @ 240V 1/2 hp
Contact Material Silver Alloy
Socket Code C
Status Indicator LED Indicator
HP @ 120V 1/3 hp
Power Consumption - Relay 2 VA
Socket Mfr. No. PTF11PC
Standards CSA Certified, UL Listed
Green Environmental Attribute RoHS 2011/65/EU Compliant
Pin Shape Flat
Maximum Operating Temperature 113 Degrees F
Frequency 50/60 Hz
Coil Resistance 72 ohm
Weight 2.3 oz
Electrical Operating Durability 100,000
Mechanical Operating Durability 10,000,000
Horsepower @ 240V AC 1/2 hp
Insulation Resistance 1,000 megaohm
Push-To-Test Method Manual
Series MJN Series
Dielectric Strength Greater Than2,500V AC RMS 60 Hz All Other Mutually Insulated Elements, Greater Than750V AC RMS 60 Hz Across Open Contacts
Power Consumption 2 VA
Compatible with Manufacturer Model Number PTF11PC, PTF21PC
Horsepower @ 120V AC 1/3 hp
Sealing Enclosed
Motor Rated Yes
For Use With 1/2 HP Motor
Minimum Operating Temperature -49 Degrees F
Compatible Manufacturer Part Number PTF11PC, PTF21PC
Compatible Manufacturer Model Number PTF11PC, PTF21PC
For Manufacturer Part Number PTF11PC, PTF21PC
Compatible with Mfr. Model Number PTF11PC, PTF21PC
Country of Origin China
