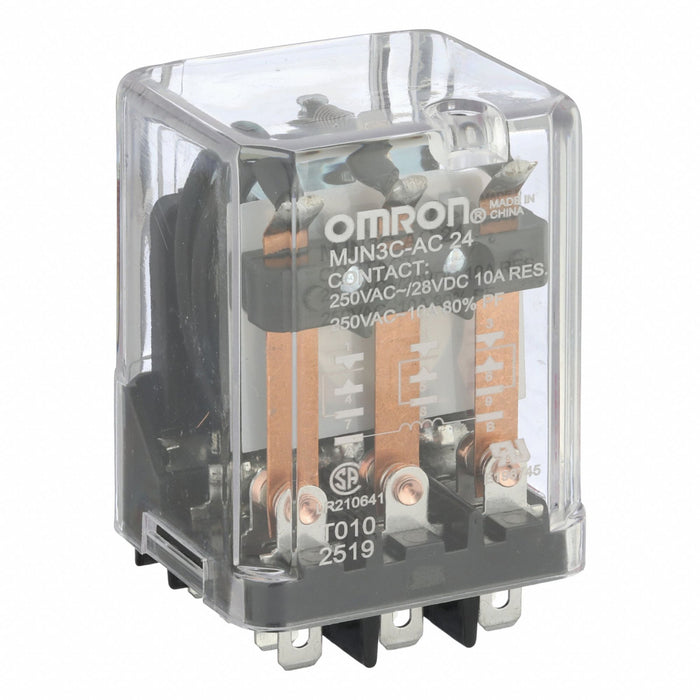

Omron MJN3C-AC24 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V AC, 3PDT, 11 Pins/Terminals

Omron MJN3C-AC24 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24V AC, 3PDT, 11 Pins/Terminals

UPC: | Harmonization / Schedule B : 8536.49.0080

Country of Origin: China | Shipping Weight: 0.2 lbs

$46.25 - $46.25
$46.25
$46.25 - $46.25
$46.25

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.187 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.91 in, Body Height 1.53 in, Body Width 1.4 in

Mounting Style Plug-In
Electrical Connection Quick Connect
Base Shape Square
Number of Pins 11
Coil Voltage 24V AC
Current Rating 10 A
Contact Form 3PDT
Contact Rating (AC) 10 A @ 240V
Contact Rating (DC) 10 A @ 28V
Power Consumption - Relay 2 VA
HP @ 120V 1/3 hp
Standards CSA Certified, UL Listed
Socket Code C
Contact Material Silver Alloy
Socket Mfr. No. PTF11PC
HP @ 240V 1/2 hp
Status Indicator No Indicator
Electrical Operating Durability 100,000
Compatible with Manufacturer Model Number PTF11PC, PTF11QDC, PTF21PC, PTFPCB
Horsepower @ 240V AC 1/2 hp
Horsepower @ 120V AC 1/3 hp
Pin Shape Flat
Insulation Resistance 1,000 megaohm
Input Voltage 24V AC
Sealing Enclosed
Coil Resistance 72 ohm
Power Consumption 2 VA
Motor Rated Yes
Weight 2.3 oz
Dielectric Strength Greater Than2,500V AC RMS 60 Hz All Other Mutually Insulated Elements, Greater Than750V AC RMS 60 Hz Across Open Contacts
Maximum Switching Voltage 28V DC, 600V AC
Push-To-Test Method Manual
Maximum Operating Temperature 113 Degrees F
Mechanical Operating Durability 10,000,000
Minimum Operating Temperature -49 Degrees F
Series MJN Series
Compatible Manufacturer Part Number PTF11PC, PTF11QDC, PTF21PC, PTFPCB
Compatible Manufacturer Model Number PTF11PC, PTF11QDC, PTF21PC, PTFPCB
For Manufacturer Part Number PTF11PC, PTF11QDC, PTF21PC, PTFPCB
Compatible with Mfr. Model Number PTF11PC, PTF11QDC, PTF21PC, PTFPCB
Country of Origin China
