Occupancy Sensor WSX PDT WH, Fluorescent/Incandescent/LED, Hard Wired, 800W - KVM Tools Inc.KV20VE44

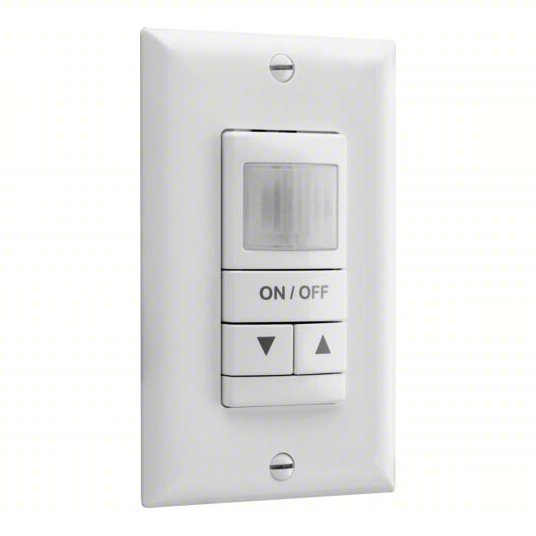

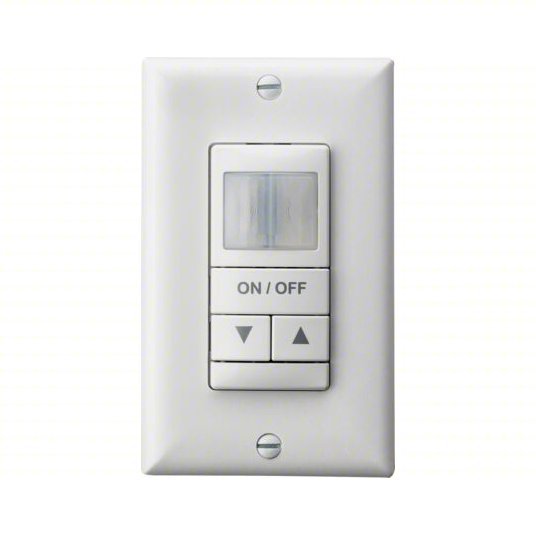

Occupancy Sensor WSX PDT WH, Fluorescent/Incandescent/LED, Hard Wired, 800W

UPC: 745975810048 | Harmonization / Schedule B : 8536.50.9065

Country of Origin: | Shipping Weight:

$169.04 - $169.04
$169.04
$169.04 - $169.04
$169.04
Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Microphonic, Load Rating @ 120V AC 800W, Communication Method Hard Wired, Maximum Coverage Area 2,000 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method 0-10V, Dimming Type No Dimming
Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)/Microphonic
Installation Location - Motion Sensor Wall Switch Box
Operating Voltage - Motion Sensing and Dimming 120 V AC, 277 V AC
Color - Motion Sensing and Dimming White
Time Delay Adjustment Method - Motion Sensor Adjustable
Time Delay - Motion Sensor 30 sec to 30 min
Max. Capacity @ 277VAC 1200W (Incandescent)
Installation Type Wall
Watts @ 120V 800
Includes Wall Plate/Photocell
Time Delay Adjustable
Timer Range 30 sec. to 30 min.
Sensor Type Dual Technology PIR/Microphonic
For Use With Commercial and Residential Lighting Control Applications
Watts @ 277V 1200
Voltage 120/277VAC
Color White
Item Occupancy Sensor
Viewing Angle 180 Degrees
Coverage Angle - Motion Sensor 180 Degrees
Max. Capacity @ 120VAC 800W (Incandescent)
Coverage 2000 sq. ft.
Standards cUL Listed, UL Listed
Lighting Technology Fluorescent, Incandescent, LED
Communication Method Hard Wired
Number of Gangs 1
Wall Plate Not Included
Series Sensor Switch
Minimum Operating Temperature 32 Degrees F
Installation Location Wall
Compatible with Series Not Applicable
Maximum Coverage Area 2,000 sq ft
Includes Dimming Switch Dimming Switch Not Included
Load Rating @ 120V AC 800W
Sensor Operation Occupancy, Photocell
Dimming Type No Dimming
Includes Motion Sensor Yes
Fan Rated No
Horsepower Rating 1/4 hp
Coverage Type Small Motion
Minimum Time Delay 30 sec
Nightlight No
Rated Frequency 50/60 Hz
Maximum Operating Temperature 140 Degrees F
Neutral Required No
Maximum Detection Distance 20 ft
Maximum Time Delay 30 min
Load Rating @ 277V AC 1,200W
Coverage Angle 180 Degrees
Number of Buttons 2
Dimming Method 0-10V
Manufacturer Warranty 5 yr
Includes Wall Plate Wall Plate Included
