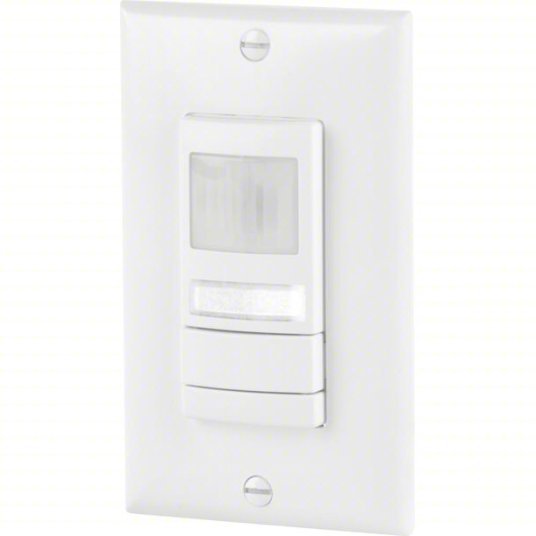

Occupancy Sensor WSX PDT NL WH, Fluorescent/Incandescent/LED, Hard Wired, 800W

UPC: 999570357358 | Harmonization / Schedule B : 8536.50.9065

Country of Origin: | Shipping Weight:

Original price $147.14 - Original price $147.14
Original price
$147.14
$147.14 - $147.14
Current price $147.14
Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Compatible with Series nLight, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Microphonic, Load Rating @ 120V AC 800W, Communication Method Hard Wired, Maximum Coverage Area 2,000 sq ft, Neutral Required No, Color White, Nightlight Yes, Dimming Method 0-10V, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)/Microphonic
Installation Location - Motion Sensor Wall Switch Box
Operating Voltage - Motion Sensing and Dimming 120 V AC, 277 V AC
Color - Motion Sensing and Dimming White
Time Delay Adjustment Method - Motion Sensor Adjustable
Time Delay - Motion Sensor 30 sec to 30 min
Standards cUL Listed, UL Listed
Max. Capacity @ 120VAC 800W (Incandescent)
Watts @ 120V 800
Coverage 2000 sq. ft.
Watts @ 277V 1200
Item Occupancy Sensor
Max. Capacity @ 277VAC 1200W (Incandescent)
For Use With Commercial and Residential Lighting Control Applications
Voltage 120/277VAC
Time Delay Adjustable
Viewing Angle 180 Degrees
Installation Type Wall
Includes Wall Plate/Photocell
Lighting Technology Fluorescent, Incandescent, LED
Color White
Timer Range 30 sec. to 30 min.
Coverage Angle - Motion Sensor 180 Degrees
Sensor Type Dual Technology PIR/Microphonic
Communication Method Hard Wired
Number of Gangs 1
Wall Plate Not Included
Series Sensor Switch
Fan Rated No
Manufacturer Warranty 5 yr
Maximum Time Delay 30 min
Horsepower Rating 1/4 hp
Load Rating @ 120V AC 800W
Number of Buttons 1
Neutral Required No
Compatible with Series nLight
Dimming Method 0-10V
Includes Motion Sensor Yes
Minimum Time Delay 30 sec
Coverage Type Small Motion
Sensor Operation Occupancy, Photocell
Dimming Type No Dimming
Rated Frequency 50/60 Hz
Coverage Angle 180 Degrees
Maximum Detection Distance 20 ft
Installation Location Wall
Maximum Coverage Area 2,000 sq ft
Load Rating @ 277V AC 1,200W
Minimum Operating Temperature 32 Degrees F
Includes Dimming Switch Dimming Switch Not Included
Nightlight Yes
Includes Wall Plate Wall Plate Included
Maximum Operating Temperature 140 Degrees F
