Occupancy Sensor WSX PDT 2P WH, Fluorescent/Incandescent/LED, Hard Wired, 800W - KVM Tools Inc.KV20VE46

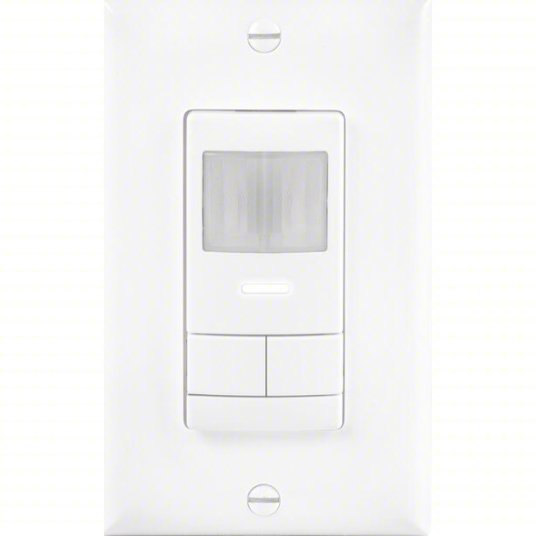

Occupancy Sensor WSX PDT 2P WH, Fluorescent/Incandescent/LED, Hard Wired, 800W

UPC: 753573767473 | Harmonization / Schedule B : 8536.50.9065

Country of Origin: | Shipping Weight:

$199.12 - $199.12
$199.12
$199.12 - $199.12
$199.12
Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Microphonic, Load Rating @ 120V AC 800W, Communication Method Hard Wired, Maximum Coverage Area 2,000 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method 0-10V, Dimming Type No Dimming
Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)/Microphonic
Installation Location - Motion Sensor Wall Switch Box
Operating Voltage - Motion Sensing and Dimming 120 V AC, 277 V AC
Color - Motion Sensing and Dimming White
Time Delay Adjustment Method - Motion Sensor Adjustable
Time Delay - Motion Sensor 30 sec to 30 min
Max. Capacity @ 277VAC 1200W (Incandescent)
Max. Capacity @ 120VAC 800W (Incandescent)
Time Delay Adjustable
Watts @ 120V 800
Coverage 2000 sq. ft.
Timer Range 30 sec. to 30 min.
Coverage Angle - Motion Sensor 180 Degrees
Voltage 120/277VAC
Lighting Technology Fluorescent, Incandescent, LED
Item Occupancy Sensor
Standards cUL Listed, UL Listed
Includes 2-Pole
Color White
Installation Type Wall
Sensor Type Dual Technology PIR/Microphonic
For Use With Commercial and Residential Lighting Control Applications
Viewing Angle 180 Degrees
Watts @ 277V 1200
Communication Method Hard Wired
Number of Gangs 1
Wall Plate Not Included
Series Sensor Switch
Maximum Detection Distance 20 ft
Coverage Type Small Motion
Includes Wall Plate Wall Plate Included
Maximum Coverage Area 2,000 sq ft
Maximum Time Delay 30 min
Compatible with Series Not Applicable
Nightlight No
Sensor Operation Occupancy, Photocell
Load Rating @ 120V AC 800W
Horsepower Rating 1/4 hp
Fan Rated No
Neutral Required No
Dimming Method 0-10V
Includes Motion Sensor Yes
Rated Frequency 50/60 Hz
Coverage Angle 180 Degrees
Number of Buttons 2
Manufacturer Warranty 5 yr
Includes Dimming Switch Dimming Switch Not Included
Load Rating @ 277V AC 1,200W
Maximum Operating Temperature 140 Degrees F
Minimum Operating Temperature 32 Degrees F
Installation Location Wall
Dimming Type No Dimming
Minimum Time Delay 30 sec
