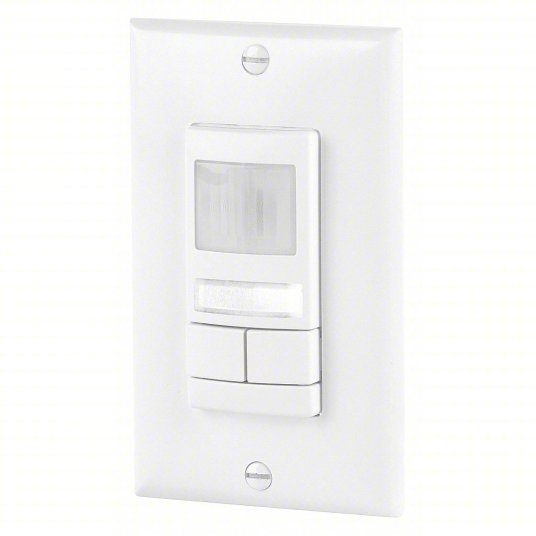

Occupancy Sensor WSX PDT 2P NL WH, Fluorescent/Incandescent/LED, Hard Wired, 800W

UPC: 994141297835 | Harmonization (Schedule B): 8536.50.9065

Original price $198.30 - Original price $198.30
Original price
$198.30 - $198.30
Current price $198.30
Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Compatible with Series nLight, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Microphonic, Load Rating @ 120V AC 800W, Communication Method Hard Wired, Maximum Coverage Area 2,000 sq ft, Neutral Required No, Color White, Nightlight Yes, Dimming Method 0-10V, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)/Microphonic
Installation Location - Motion Sensor Wall Switch Box
Operating Voltage - Motion Sensing and Dimming 120 V AC, 277 V AC
Color - Motion Sensing and Dimming White
Time Delay Adjustment Method - Motion Sensor Adjustable
Time Delay - Motion Sensor 30 sec to 30 min
Coverage Angle - Motion Sensor 180 Degrees
Timer Range 30 sec. to 30 min.
Item Occupancy Sensor
Lighting Technology Fluorescent, Incandescent, LED
Viewing Angle 180 Degrees
Standards cUL Listed, UL Listed
Watts @ 120V 800
Sensor Type Dual Technology PIR/Microphonic
Voltage 120/277VAC
Includes 2-Pole
Installation Type Wall
Time Delay Adjustable
Watts @ 277V 1200
Color White
Coverage 2000 sq. ft.
Max. Capacity @ 120VAC 800W (Incandescent)
For Use With Commercial and Residential Lighting Control Applications
Max. Capacity @ 277VAC 1200W (Incandescent)
Communication Method Hard Wired
Number of Gangs 1
Wall Plate Not Included
Series Sensor Switch
Maximum Detection Distance 20 ft
Sensor Operation Occupancy, Photocell
Maximum Time Delay 30 min
Coverage Type Small Motion
Minimum Time Delay 30 sec
Load Rating @ 120V AC 800W
Load Rating @ 277V AC 1,200W
Includes Wall Plate Wall Plate Included
Number of Buttons 2
Coverage Angle 180 Degrees
Horsepower Rating 1/4 hp
Includes Dimming Switch Dimming Switch Not Included
Maximum Coverage Area 2,000 sq ft
Maximum Operating Temperature 140 Degrees F
Installation Location Wall
Nightlight Yes
Manufacturer Warranty 5 yr
Includes Motion Sensor Yes
Neutral Required No
Rated Frequency 50/60 Hz
Minimum Operating Temperature 32 Degrees F
Dimming Type No Dimming
Dimming Method 0-10V
Compatible with Series nLight
Fan Rated No
