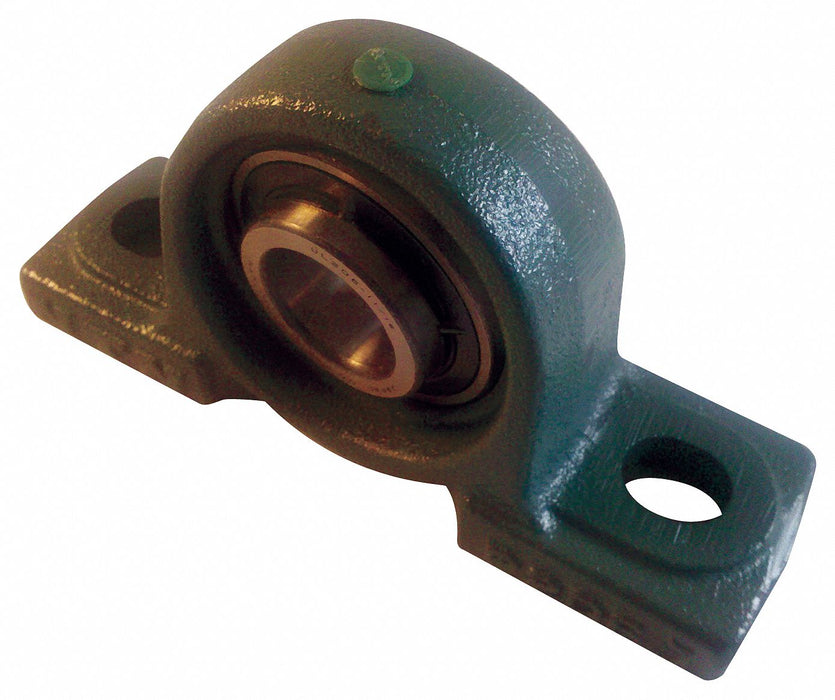

NTN UCPX12-207D1 Pillow Block Bearing 2-7/16 in Bore

NTN UCPX12-207D1 Pillow Block Bearing, 2-7/16 in Bore, Cast Iron, Set Screw Locking, Ball Insert

UPC: | Harmonization / Schedule B : 8483.20.4040

Country of Origin: Japan | Shipping Weight: 14.85 lbs

$484.37 - $484.37
$484.37
$484.37 - $484.37
$484.37

Pillow Block Bearing, Base Height 1.299 in, Base Width 3.267 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 7/16 in, Bore Type Cylindrical, Center Height 2 63/64 in, Closure Open, Housing Material Cast Iron, Lubricant Material NLGI #3 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 7 63/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 5.944 in

System of Measurement Inch
Shaft Locking Type Set Screw
Housing Material Cast Iron
Bearing Material 52100 Chrome Steel
Bearing Insert Type Ball
Bearing Insert Material Alloy Steel
Series Medium Duty
Closure Open
Finish Painted
Temp. Range -20 Degrees to 250 Degrees F
Number of Mount Holes 2
Bearing Material Grade 52100
Static Radial Load Capacity 8,992 lbf
Lubricant Material NLGI #3 Equivalent
Seal Material Nitrile Rubber
Minimum Temperature -40 Degrees F
Bore Type Cylindrical
Maximum Temperature 250 Degrees F
Seal Type Contact
Dynamic Radial Load Capacity 12,927 lbf
Mount Type Bolt-Through
Country of Origin Japan
