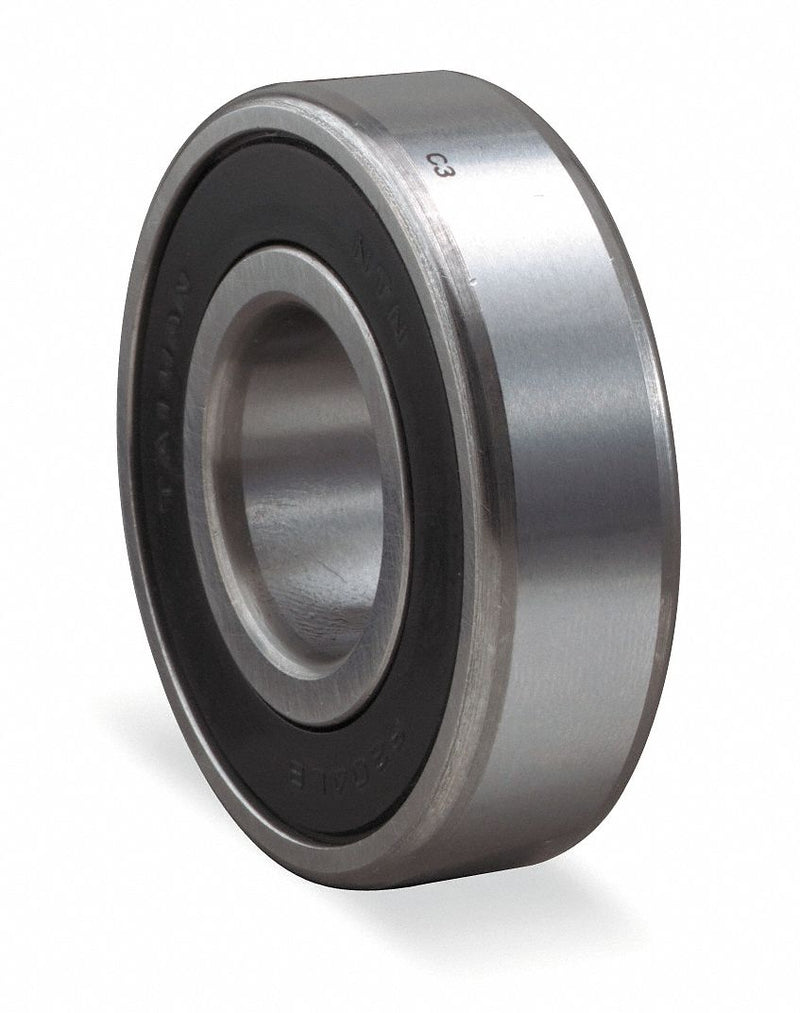

Ntn 6207LLBC3/L627 Radial Ball Bearing, 6207, Dbl Sealed, Non-Contact Seal, 35 mm Bore, 72 mm OD, 17 mm Wd

Ntn 6207LLBC3/L627 Radial Ball Bearing, 6207, Dbl Sealed, Non-Contact Seal, 35 mm Bore, 72 mm OD, 17 mm Wd

UPC: | Harmonization / Schedule B : 8482.10.5052

Country of Origin: Canada | Shipping Weight: 0.65 lbs

$68.06 - $68.06
$68.06
$68.06 - $68.06
$68.06

Radial Ball Bearing, Bearing Industry Number 6207, Bore Diameter 35 mm, Closure Double Sealed, Outer Ring Width 17 mm, Outside Diameter 72 mm, Ring Material Alloy Steel, Seal Type Non-Contact, System of Measurement Metric, Cage Material Steel, Ball Material Alloy Steel, Cage Type Pressed, Dynamic Radial Load Capacity 28,400 N, Fillet Radius 1.1 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material SRI 2

Bore Dia. 35 mm
Outside Dia. 72 mm
Width 17 mm
Bore Diameter 35 mm
Outside Diameter 72 mm
Outer Ring Width 17 mm
Fillet Radius 1.1 mm
Bearing Type Sealed
Single Row/Double Row Single Row
System of Measurement Metric
Seal/Shield Type Double Sealed
Bearing Industry Number 6207
Closure Double Sealed
Number of Rows 1
Ring Material Alloy Steel
Ball Material Alloy Steel
Cage Material Steel
Temp. Range -20 Degrees to 250 Degrees F
Lubrication SRI#2 Grease
Dynamic Load Capacity 5.75 lb
Industry Number 3VX630
Seal Material Nitrile Rubber
Static Load Capacity 3,450 lb
Includes Retaining Ring No
Maximum Temperature 120 Degrees C
Lubricant Material SRI 2
Cage Type Pressed
Retaining Ring Groove No
Maximum Speed 9,800 RPM
Minimum Temperature -40 Degrees C
Seal Type Non-Contact
Finish Chrome Plated
Static Radial Load Capacity 15,300 N
Dynamic Radial Load Capacity 28,400 N
ISO Rating Class 0
Country of Origin Canada
