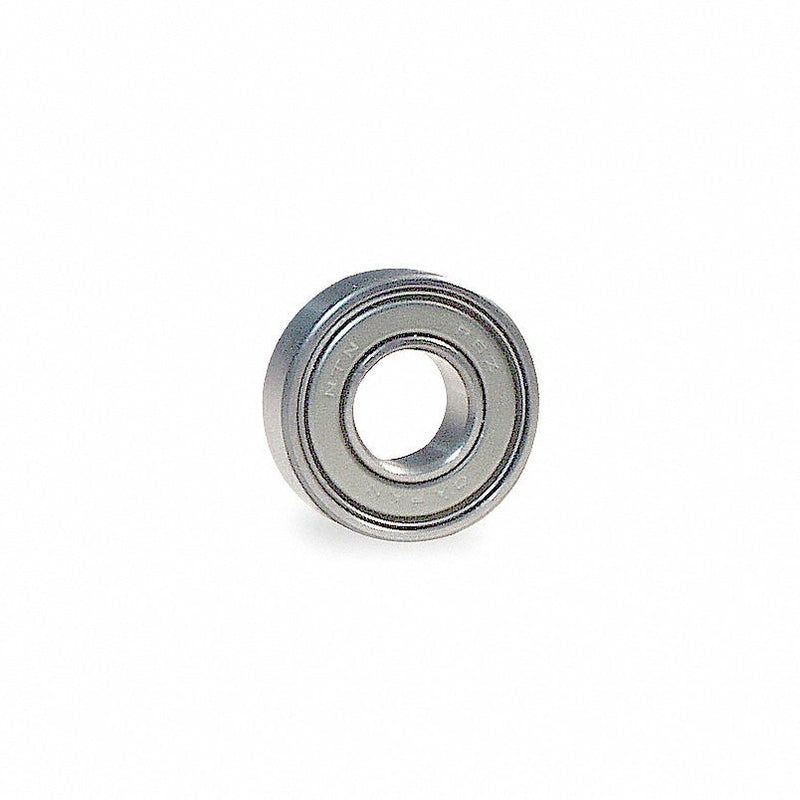

NTN 6203ZZ/15.875C3/L627 Radial Ball Bearing, Shield, 15.875mm Bore
UPC: | Harmonization (Schedule B): 8482.10.5048
SKU KV1L097
Original price
$21.79
-
Original price
$21.79
Original price
$21.79
$21.79
-
$21.79
Current price
$21.79
Radial Ball Bearing, Bearing Industry Number Special, Bore Diameter 15.875 mm, Closure Double Shielded, Outer Ring Width 12 mm, Outside Diameter 40 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, Ball Material Alloy Steel, Cage Type Pressed, Dynamic Radial Load Capacity 10,600 N, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material SRI 2
| Item | Radial Ball Bearing |
| Bearing Type | Shielded |
| Single Row/Double Row | Single Row |
| Cage Material | Steel |
| Seal/Shield Type | Double Shielded |
| Industry Number | 3VX630 |
| Shield Material | Metal |
| Temp. Range | -20 Degrees to 250 Degrees F |
| Dynamic Load Capacity | 2,160 lb |
| Lubrication | SRI#2 Grease |
| Seal Material | Synthetic Rubber |
| Static Load Capacity | 1,030 lb |
| Closure & Seal Type | Double Shielded |
| Ring Material | Alloy Steel |
| Number of Rows | One |
| Retaining Ring Thickness | Not Applicable |
| Lubricant Material | SRI 2 |
| ISO Rating | Class 0 |
| Finish | Chrome Plated |
| Static Radial Load Capacity | 4,600 N |
| Maximum Speed | 18,000 RPM |
| Closure | Double Shielded |
| System of Measurement | Metric |
| Minimum Temperature | -40 Degrees C |
| Cage Type | Pressed |
| Maximum Temperature | 120 Degrees C |
| Retaining Ring Groove | No |
| Includes Retaining Ring | No |
| Dynamic Radial Load Capacity | 10,600 N |
| Bearing Industry Number | Special |
| Package Quantity | 1 |
