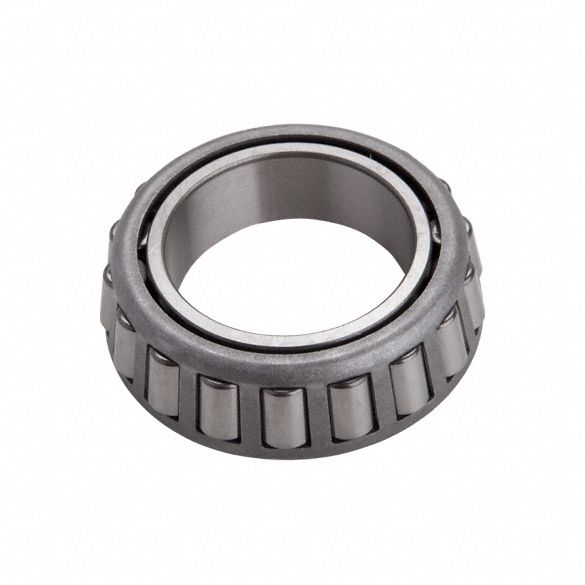

Ntn 4T-L814749 Tapered Roller Bearing Cone, L814749, 3 in Bore, 4.13 in OD, 0.75 in Cone Wd, 3.31 in Inside Dia

Ntn 4T-L814749 Tapered Roller Bearing Cone, L814749, 3 in Bore, 4.13 in OD, 0.75 in Cone Wd, 3.31 in Inside Dia

UPC: | Harmonization / Schedule B : 8482.20.0080

Country of Origin: Japan | Shipping Weight: 0.35 lbs

$332.20 - $332.20
$332.20
$332.20 - $332.20
$332.20

Tapered Roller Bearing Cone, Bearing Industry Number L814749, Bore Diameter 3 in, Bore Type Tapered, Cage Material Chrome Steel, Compatible Cup Manufacturer Part Number L814710, Cone Width 0.75 in, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outside Diameter 4.13 in, Ring Material Carbon Steel, Roller Material Carbon Steel, System of Measurement Inch, Dynamic Load Capacity 14,200 lbf, Inside Diameter 3.31 in

Cone Width 0.75 in
Outside Diameter 4.13 in
Inside Diameter 3.31 in
Shaft Fillet Radius 0.06 in
Bore Diameter 3 in
Cage Material Chrome Steel
Bearing Industry Number L814749
Dynamic Load Capacity 14,200 lbf
Roller Material Carbon Steel
Number of Rows One
Maximum Temperature 250 Degrees F
Bore Type Tapered
Standards ABMA/ANSI
Compatible Cup Manufacturer Part Number L814710
System of Measurement Inch
Static Load Capacity 25,900 lbf
Minimum Temperature -40 Degrees F
Ring Material Carbon Steel
Country of Origin Japan
