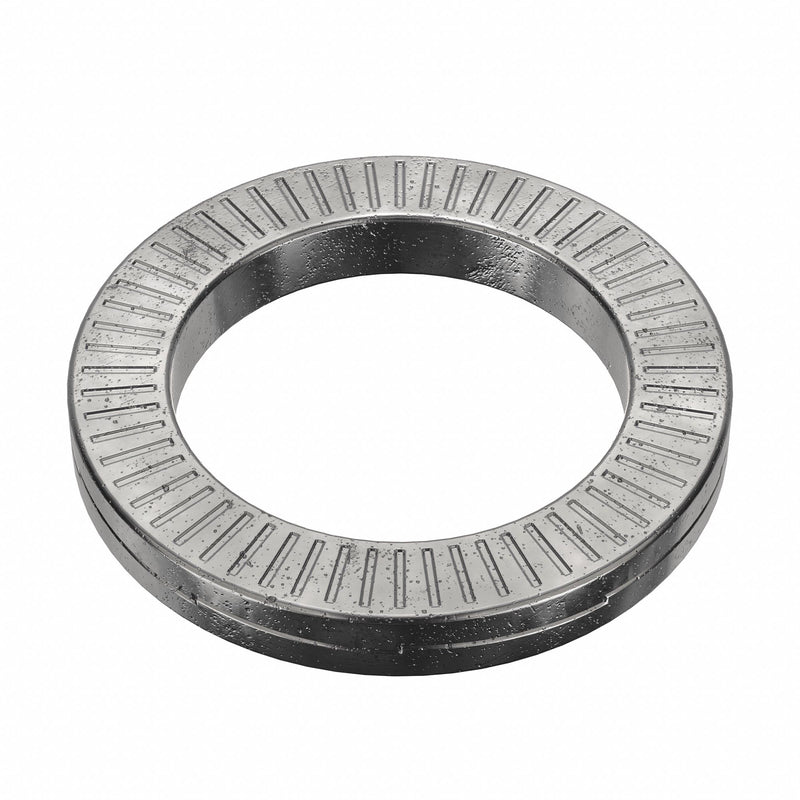

Nord-Lock 2146 Wedge Lock Washer, Advanced Corrosion Resist, Steel, 1/2 in Screw Sz, 3/32 in Max Thick, 200 PK

Nord-Lock 2146 Wedge Lock Washer, Advanced Corrosion Resist, Steel, 1/2 in Screw Sz, 3/32 in Max Thick, 200 PK

UPC: | Harmonization / Schedule B : 7318.21.0000

Country of Origin: Sweden | Shipping Weight: 1.2 lbs

$567.68 - $567.68
$567.68
$567.68 - $567.68
$567.68

Lock Washer, Steel, Delta Protect Finish, Fits Bolt Sizes 1/2", Inside Dia. 0.530", Outside Dia. 0.770", Thickness 0.100", Thickness Tolerance +/- 0.01", Rockwell Hardness Min. 46 HRC, Meets/Exceeds DIN 25201, Package Quantity 200

For Screw Size 1/2 in
Outside Diameter 0.77 in
Minimum Thickness 0.1 in
Maximum Thickness 0.1 in
Inside Diameter 0.53 in
Assembly Thickness 3/32 in
Inside Diameter - Maximum 17/32 in
Minimum Inside Diameter 17/32 in
Outside Diameter - Minimum 49/64 in
Outside Diameter - Maximum 49/64 in
CAD Available Yes
Material Steel
Finish Advanced Corrosion Resistance
Standards DIN 25201
System of Measurement Inch
Material Grade/Class Class 12.9
Thickness Tolerance +/-0.01 in
Rockwell Hardness Min 46 HRC Through hardened
Type Wedge Lock Washer
Washer Material Grade Works with bolt grades up to 12.9
Assembly Thickness Tolerance +/-0.01 in
Pack Size Small Pack
Lock Washer Type Wedge Lock
Dimensional Standards DIN 25201, RoHS Compliant
Metal Detectable Metal Detectable
FDA Approved FDA Approved
X-Ray Detectable X-Ray Detectable
Reusable Reusable
Hardness 46 HRC
Country of Origin Sweden
