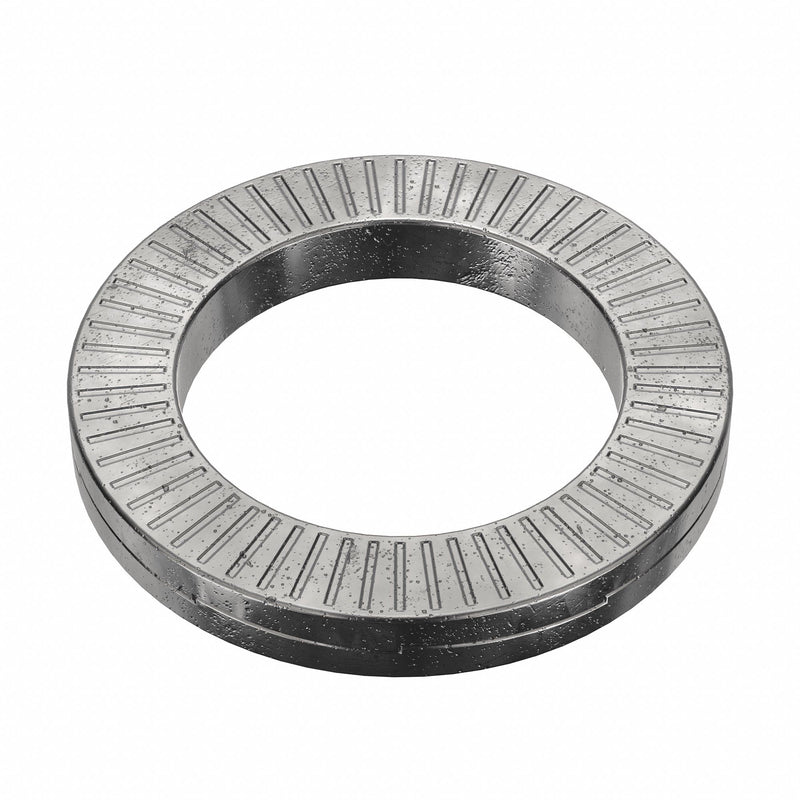

Nord-Lock 1286 Wedge Lock Washer, Advanced Corrosion Resist, Steel, 5/8 in Screw Sz, 1 in Max. Outside Dia, 100 PK

Nord-Lock 1286 Wedge Lock Washer, Advanced Corrosion Resist, Steel, 5/8 in Screw Sz, 1 in Max. Outside Dia, 100 PK

UPC: | Harmonization / Schedule B : 7318.21.0090

Country of Origin: Sweden | Shipping Weight: 1.57 lbs

$429.32 - $429.32
$429.32
$429.32 - $429.32
$429.32

Lock Washer, Steel, Delta Protect Finish, Fits Bolt Sizes 5/8", Inside Dia. 0.670", Outside Dia. 1.000", Thickness 0.130", Thickness Tolerance +/- 0.01", Rockwell Hardness Min. 46 HRC, For Use With M16 Bolt, Meets/Exceeds DIN 25201, Package Quantity 100

For Screw Size 5/8 in
Outside Diameter 1 in
Minimum Thickness 0.13 in
Maximum Thickness 0.13 in
Inside Diameter 0.67 in
Assembly Thickness 1/8 in
Inside Diameter - Maximum 43/64 in
Outside Diameter - Minimum 1 in
Minimum Inside Diameter 43/64 in
Outside Diameter - Maximum 1 in
CAD Available Yes
Material Steel
Finish Advanced Corrosion Resistance
Standards DIN 25201
System of Measurement Inch
Material Grade/Class Class 12.9
Thickness Tolerance +/-0.01 in
For Use With M16 Bolt
Rockwell Hardness Min 46 HRC Through hardened
Type Wedge Lock Washer
Washer Material Grade Works with bolt grades up to 12.9
Pack Size Small Pack
Assembly Thickness Tolerance +/-0.01 in
Lock Washer Type Wedge Lock
Dimensional Standards DIN 25201, RoHS Compliant
Hardness 46 HRC
Metal Detectable Metal Detectable
FDA Approved FDA Approved
X-Ray Detectable X-Ray Detectable
Reusable Reusable
Country of Origin Sweden
