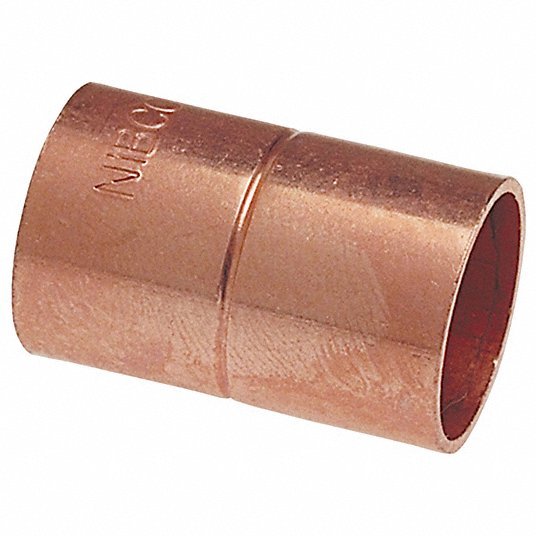

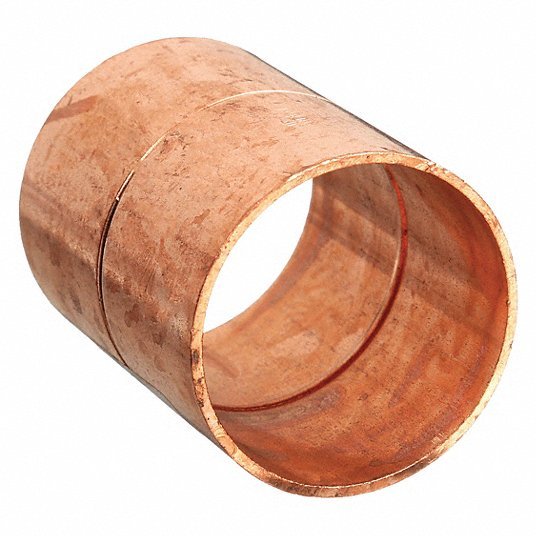

Nibco U600RS 1/2 Coupling, Rolled Tube Stop Wrot Copper, Cup x Cup, 1/2 in x 1/2 in Copper Tube Size
UPC: 039923306944 | Harmonization (Schedule B): 7412.10.0000
SKU KV5P175
Original price
$1.80
-
Original price
$1.80
Original price
$1.80
$1.80
-
$1.80
Current price
$1.80
Coupling, Rolled Tube Stop, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 1/2 in, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 5/8 in, Fitting Side B Tube Outer Diameter 5/8 in, Maximum Operating Pressure 722 psi @ 100 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Coupling
| Item | Coupling, Rolled Tube Stop |
| Tube Fitting Material | Wrot Copper |
| Pipe Fitting Material | Wrot Copper |
| Specific Fitting Shape | Coupling |
| Fitting Connection Type | C x C |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Coupling |
| Specific Pipe Fitting Shape | Coupling |
| Temp. Range | -20 Degrees to 400 Degrees F |
| Standards | ASME/ANSI B16.22 |
| Max. Pressure | 722 psi@100 Degrees F |
| Pipe Fitting Connection Type | C x C |
| Includes Center Stop | Rolled Center Stop |
| Application | Air, Gases, Potable Water |
| Material Grade | C12200 |
| Minimum Operating Temperature | 20 Degrees F |
| Fitting Side B Connection Type | Cup |
| Resistance Properties | Dezincification-Resistant |
| Fitting Side A Connection Type | Cup |
| Maximum Operating Temperature | 400 Degrees F |
| Maximum Operating Pressure | 722 psi @ 100 Degrees F |
| Fitting Material | Wrot Copper |
| For Tube OD | 5/8 in x 5/8 in |
| End Connection Type | Cup |
| Fitting Shape | Connector |
| Stop and Shape | Rolled Center Stop Straight Coupling |
| Connection Type | Cup x Cup |
