Mitutoyo 64PKA079B Mitutoyo Dial Indicator, 0 to 1 In, 0-100

UPC: 603908177579 | Harmonization (Schedule B): 9031.80.8085

SKU KV5C709
Original price $298.99 - Original price $298.99
Original price
$298.99
$298.99 - $298.99
Current price $298.99

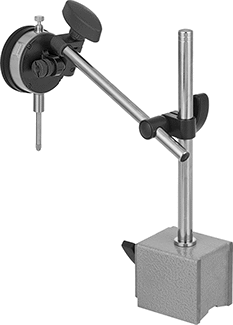

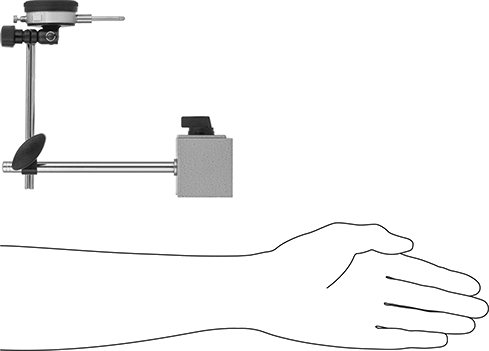

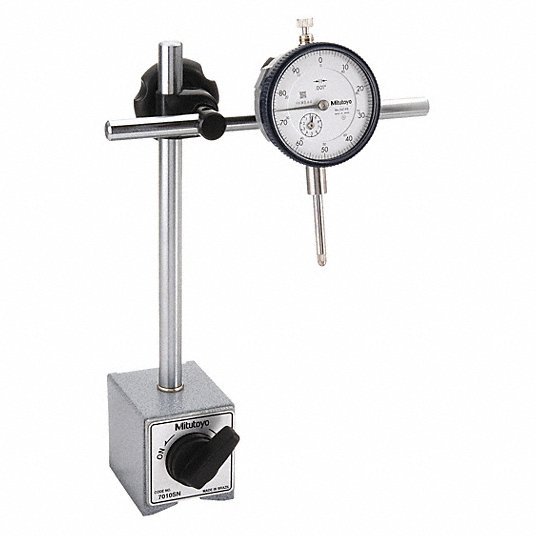

Mitutoyo Dial Indicator, Range 1 In., Range per Revolution 0.100 In., Dial Reading 0-100, Magnetic Stand Can be Attached on a Flat Surface, Perpendicularly or Horizontally or on Cylindrical Surface, Finish Fully Chrome Plated, Includes Dial Indicator and Magnetic Base with On/Off Switch

Graduations 0.001 in
Range 0 in to 1 in; 0 mm to 25.4 mm
Features Stem 3/8" Dia. 8mm #4-48 UNF Thread
Accuracy +/-0.001 in (first 2.5 revolutions), +/-0.002 in (overall)
Resolution 0.00005 in / 0.001 mm
Includes Dial Indicator
Indicator Style Plunger
Reading Continuous
Bearing Type Plain
Series 7
Dial Reading 0-10
Item Dial Indicator & Mag Base Set
Dial Color White
Bezel Lock No
Back Type Magnetic
Range per Revolution 0.100 in
Long Form Calibration Certificate No
Standards ISO, ISO / IEC Guide 98-3, ISO 14253-2, JIS B 0641-1
Minimum Measurement - Inch 0 in
Includes Case No
Included Certification Certificate of Inspection
Case Type No case included
Maximum Measurement - mm 25.4 mm
Minimum Measurement - mm 0 mm
Included Indicator and Base 2416S, 7010S
Compatible Wireless Transmitter This is not an electronic indicator so this attribute does not apply
Arm Type Post and Arm
Step Type The 3/8 in diameter stem easily attaches to the base
Base Type Magnetic
Includes Snug Yes
Maximum Measurement - Inch 1 In
Compatible Indicator Mounts Lug Back, Stem
Operation Type Mechanical
AGD Number AGD 2
Included Base manufacturer Model No 7010S
Holding Power 600 N
Magnet Type On-Off Switch
Data Output Type This is not an electronic indicator so this attribute does not apply
Included Indicator Manufacturer Model No 2416S
Compatible SPC Cable Type E
Test Indicator Style Vertical
Product Type Dial Indicator & Mag Base Set
Package Quantity 1
