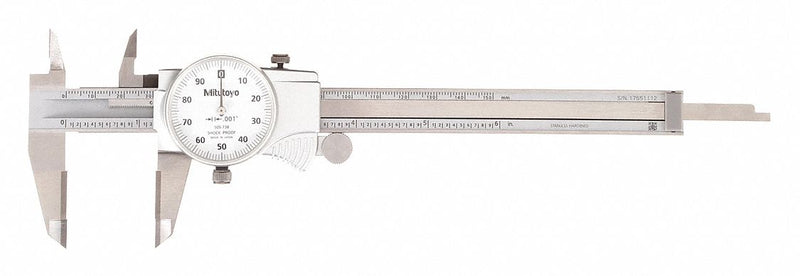

Mitutoyo 505-738 Dial Caliper, 0-6 in, +/-0.001 in Accuracy, Stainless Steel, Carbide-Tipped Jaws

Mitutoyo 505-738 Dial Caliper, 0-6 in, +/-0.001 in Accuracy, Stainless Steel, Carbide-Tipped Jaws

UPC: 603908357155 | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 0.95 lbs

$322.37 - $322.37
$322.37
$322.37 - $322.37
$322.37

Dial Caliper, Range 0 in to 6 in, Accuracy +/-0.001 in, Long Form Calibration Certificate No, Caliper Material Stainless Steel, Dial Color White, Dial Graduation 0.001 in, Dimension Type Inch, Jaw Actuation Type Thumb Wheel, Jaw Depth 40 mm, Jaw Material Carbide-Tipped, Maximum Measurement - Inch 6 in, Measurements 4-Way, Measures Depth Yes, Measures Inside Dimension Yes, Measures Outside Dimension Yes, Measures Step Yes, Minimum Measurement - Inch 0 in, Case Type Case

Includes Fitted case
Features Carbide-Tipped Jaws, Lapped Jaws, Inverted Covered Rack and Dial Movement
Graduations 0.001 in
Accuracy +/-0.001 in
Standards US Federal Specifications
Caliper Range 0-6 in
Caliper Material Stainless Steel
Caliper Grouping Dial Caliper
Caliper Dial Color White
Long Form Calibration Certificate No
Range per Revolution 0.1 in
Dial Graduation 0.001 in
Included Certification Certificate of Inspection
Measures Step Yes
Maximum Measurement - Inch 6 in
Range 0 in to 6 in
Jaw Shape Standard
Jaw Actuation Type Thumb Wheel
Minimum Measurement - Inch 0 in
Measurements 4-Way
Includes Case Yes
Jaw Material Carbide-Tipped
Shockproof Dial Yes
Includes Bezel Lock Yes
Dial Color White
Case Type Case
Includes Locking Nut Yes
Inches Measured - Maximum 6 in
Inches Measured - Minimum 0 in
Scale Inch Graduations 0.1 in
Scale Millimeter Graduations 1 mm
Dial Graduations 0.001 in
Measurement Type Depth, Inside, Outside, Step
