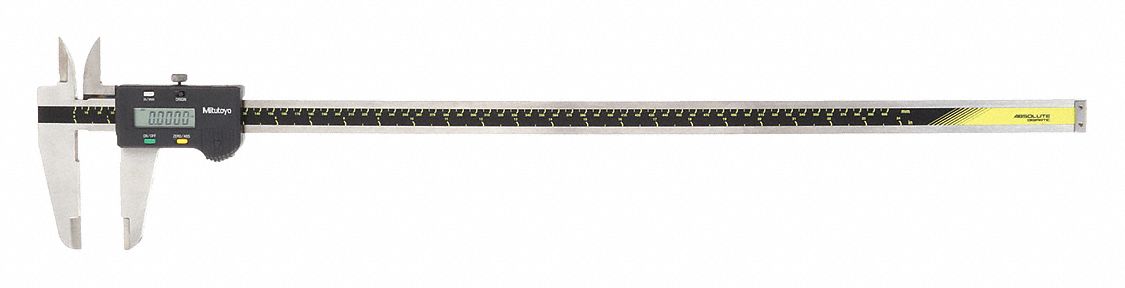

Mitutoyo 500-506-10 Long Range Digital Caliper: 0 in to 24 in /0 mm to 600 mm, Inch/Metric, Cabled

Mitutoyo 500-506-10 Long Range Digital Caliper: 0 in to 24 in /0 mm to 600 mm, Inch/Metric, Cabled

UPC: | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 8.8 lbs

$1,445.20 - $1,445.20
$1,445.20
$1,445.20 - $1,445.20
$1,445.20

The Mitutoyo 500-506-10 Absolute Digital Caliper is a digital caliper that allows you to work accurately. It can measure both in inches and millimeters, with an accuracy of +/-0.002". The 0 to 24 inch range of the Mitutoyo 500-506-10 digital caliper means it can be used for various projects. Its stainless steel jaws are durable and easy to clean. The jaw material is also made from stainless steel, so it won't rust or corrode over time. With its rolling thumb wheel, control buttons on the face, zero, on/off and inch/mm functions, this digital caliper provides accurate measurements every time. For your next project requiring precise measurements, equip yourself with the Mitutoyo 500-506-10 Absolute Digital Caliper.

Caliper Material Stainless Steel
Caliper Range 0-24 in /0-600mm
Accuracy +/- 0.0020 in
SPC Output Yes
Resolution 0.0005 in/0.01 mm
IP Rating Not Rated
Absolute Positioning Yes
Features Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Caliper Grouping Digital Caliper
Long Form Calibration Certificate No
Standards TUV Rheinland
Graduations - Upper Scale 24 in
Repeatability 0.0005 in/0.01 mm
Jaw Shape Standard
Dust Resistant Yes
With Locking Nut Yes
Data Output Type Cabled
Maximum Measurement - Inch 24 in
Coolant Resistant No
Minimum Measurement - Fractional Inch 0 in
Compatible SPC Cable Mfr. No. 959149; Mfr. No. 959150
Case Type Plastic Case
Maximum Measurement - mm 600 mm
Included Certification Certificate of Inspection
Display Type LCD
Range 0 in to 24 in, 0 to 600 mm
Functions Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Includes Battery Yes
Water Resistant No
Minimum Measurement - Inch 0 in
Graduations - Lower Scale 0 in
Measurements 4-Way
Left-Handed Operation No
Measures Step Yes
Minimum Measurement - mm 0 mm
Jaw Material Stainless Steel
Includes Case Yes
Data Output Connection Type Digimatic
Linear Encoder Type Electrostatic Capacitance
Jaw Actuation Type Slide
Millimeters Measured - Maximum 600 mm
Battery Type SR44
Product Type Digital Caliper
Millimeters Measured - Minimum 0 mm
Inches Measured - Minimum 0 in
Data Output Wired Connection Digimatic
Inches Measured - Maximum 24 in
Measurement Type Depth, Inside, Outside, Step
Country of Origin Japan
